Sennheiser XSW1-CI1-A Wireless Instrument Cable System
Amplify your tunes, and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band.
an easy to use all-in one wireless system for guitarists and bassists, excellent for live sound.

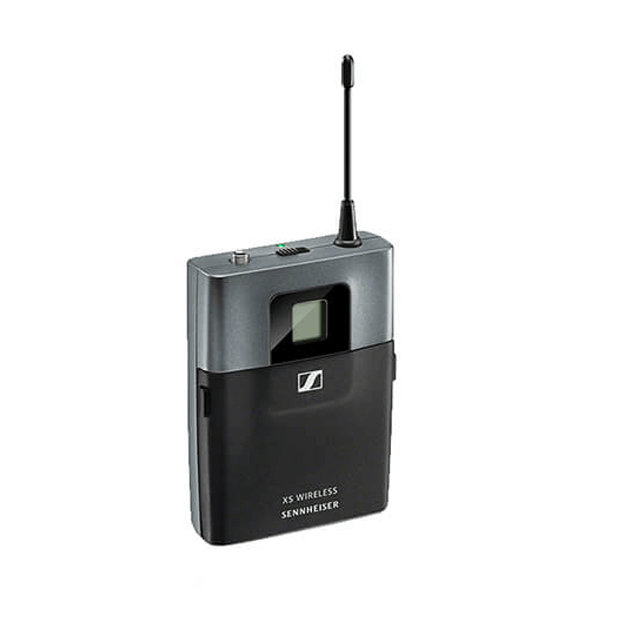

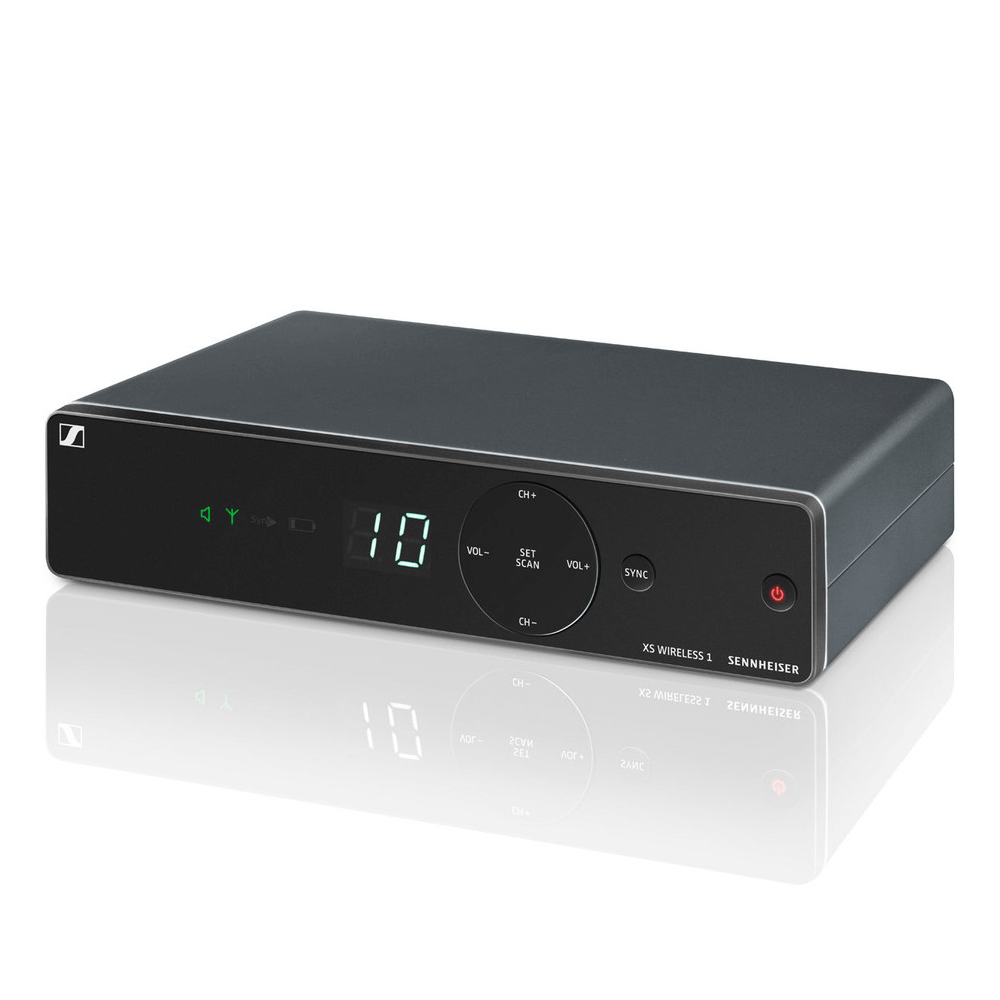

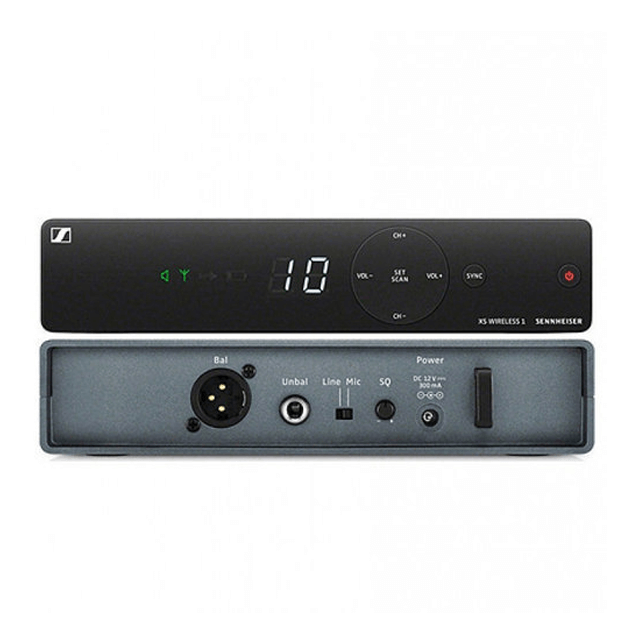

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable.
FEATURES
• Automatic frequency management and synchronization via remote channel for easy setup
• Ci1 instrument cable provides an untethered onstage experience
• Internal diversity receiver antennas for a simplified look
• Easy-to-use wireless instrument system with great sound
• Compact bodypack transmitter, rugged instrument cable
• 1-button scanning and synchronization make setup easy
• Streamlined design offers a sleek, modern appearance
• Intuitive icon-based indicators for simple operation
• Selectable UHF frequencies within a large bandwidth
• Antenna-switching diversity reception
• Use up to 10 systems simultaneously
• Integrated antennas
SPECIFICATIONS
• Output voltage ~ 6.3 mm jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu• Synchronization ~ 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Frequency ~ 8 frequency banks, each with up to 10 factory-preset channels
• Diversity principle ~ Antenna switching diversity via internal antennas
• Squelch ~ adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Adjustment Range Transmitter ~ 0 to -30 dB, adjustable in 10 dB steps
• Temperature Range ~ operation: 0°C to +40°C, storage: –20°C to +70°C
• AF frequency response ~ Receiver: 50 to 16,000 Hz (–3 dB)
• Audio adjustment range ~ 45 dB, adjustable in 5-dB steps
• Dimensions
Receiver: approx. 200 x 42 x 127 mm
Bodypack transmitter: approx. 71 x 96 x 28 mm
• Weight ~ 340g (receiver), approx. 95g (transmitter)
• Power supply
Receiver: 12 V DC nom. / 300 mA
Transmitter: 2 AA size batteries, 1.5 V
• Receiver Principle ~ double superheterodyne
• Sensitivity ~ < 3 μV at 52 dB(A)rms S/N
• THD, total harmonic distortion ~ ≤ 0.9%
• Frequency range
A: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz
• Line / Mic level ~ 20 dB, switchable
• Switching bandwidth ~ up to 24 MHz
• Signal-to-noise ratio ~ ≥ 103 dBA
• Operating time ~ approx. 10 hrs
• SPL for peak deviation ~ 130 dB
• Input sensitivity ~ 1.5 mV / Pa
• Housing ~ Rugged ABS housing
• Modulation ~ Wideband FM
• RF output power ~ 10 mW
