Sennheiser EW135G3 Wireless Vocal Microphone System
You can depend on a great performance with this vocal system.

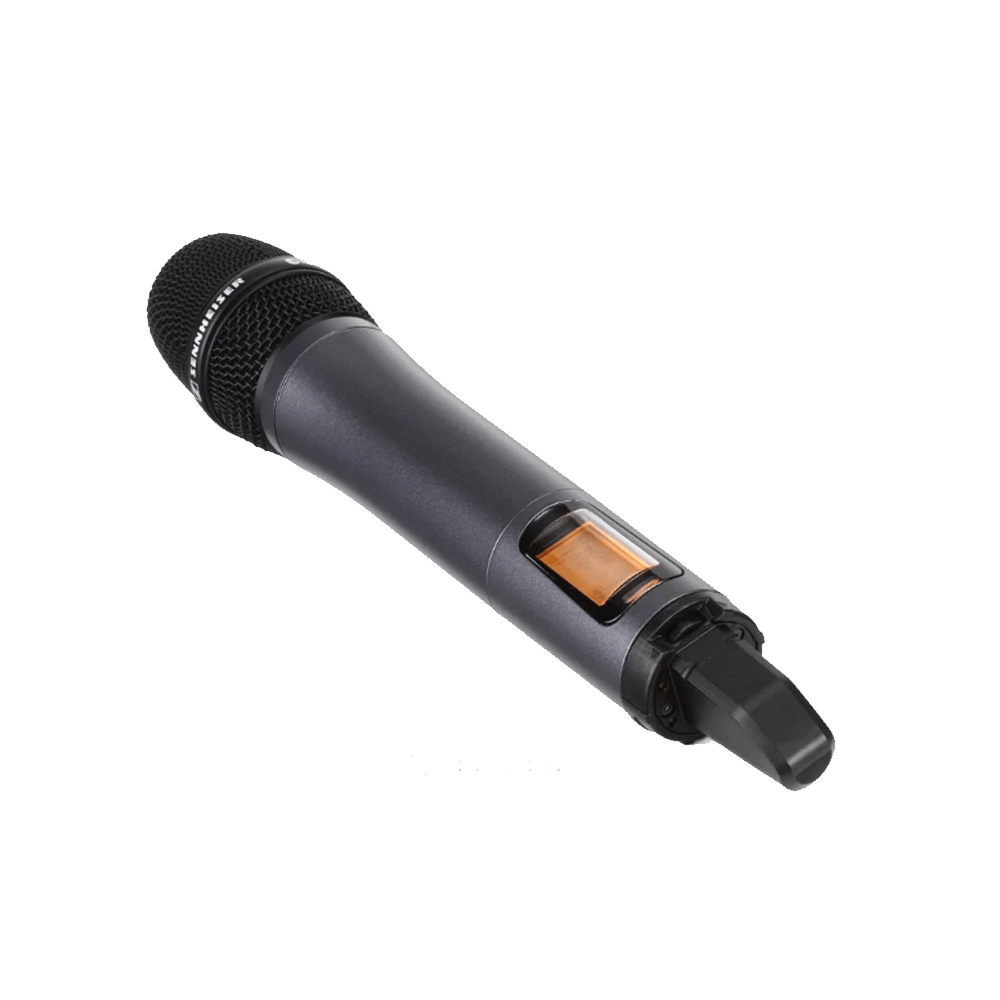

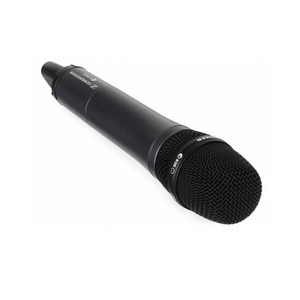

Handheld wireless system featuring the SKM 100 G3 equipped with the famed e835 cardioid dynamic capsule.
The handheld microphone now allows you to charge the optional rechargeable pack while it remains in the transmitter.
Wirelessly link up the transmitter with the receiver with a single touch of the sync button.
The true diversity receiver has a backlit graphic display that makes it easy to read under all lighting conditions.
Versatility for every style of music and presentations.

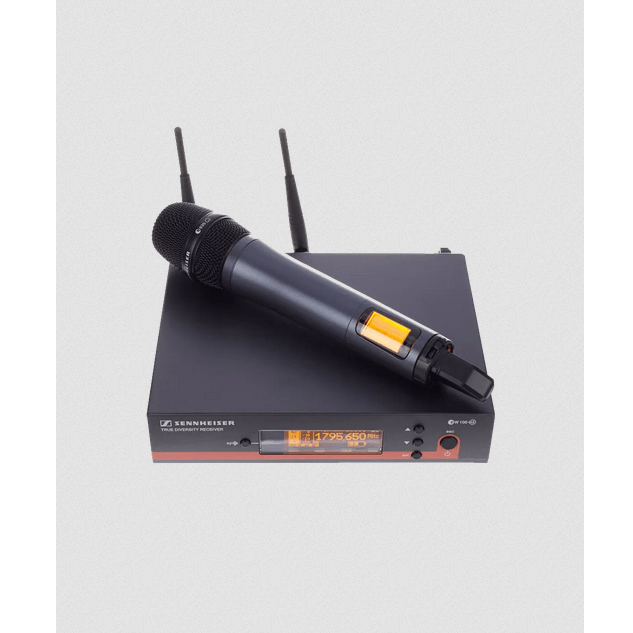

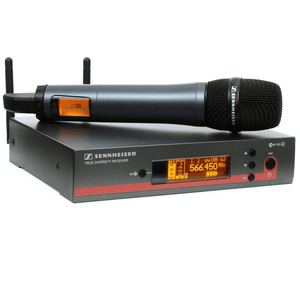

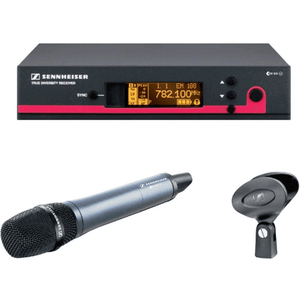

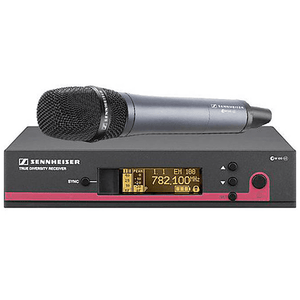

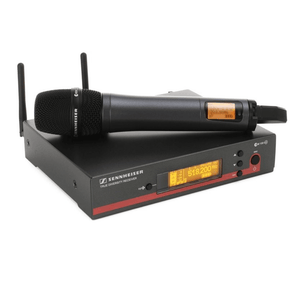

Includes mic clip and EM100 rack-mountable True Diversity receiver with intuitive scan, and sync functions that ensure trouble-free operation.
FEATURES
• Handheld transmitter with easy-exchangeable microphone modules from evolution series
• Transmitter feature battery indication in 4 steps, also shown on receiver display
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• 42MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Contacts for recharging BA 2015 accupack directly in the transmitter
• Complete system with microphone, transmitter and rackmount receiver
• Enhanced frequency bank system with up to 12 compatible frequencies
• Automatic frequency scan feature searches for available frequencies
• Wireless synchronization of transmitters via infrared interface
• Wide range of accessories adapts the system to any requirement
• Auto-Lock function avoids accidental changing of settings
• Operates on Sennheiser's "G" frequency band (566-608MHz)
• User-friendly menu operation with more control options
• Illuminated graphic display (transmitter and receiver)
• Sturdy metal housing (transmitter and receiver)
• Professional-quality sound support for less!
• An outstanding handheld vocal microphone
• Integrated Equalizer and Soundcheck mode
• Increased range for audio sensitivity
• HDX compander for crystal-clear sound
• High-quality true diversity reception
• Enhanced AF frequency range
SPECIFICATIONS
• Audio output level (unbalanced) ~ Jack : +10 dBu max• In compliance with ~ ETS 300422, ETS 300445, CE, FCC
• Audio output level (balanced) ~ XLR : +18 dBu max
• Frequency response (Microphone) ~ 80 - 18000 Hz
• Sound pressure level (SPL) ~ 154 dB(SPL) max.
• Transmission/receiving frequencies ~ 1680
• THD, total harmonic distortion ~ < 0,9 %
• Operating time ~ Transmitter: > 8 h
• Signal-to-noise ratio ~ > 110 dB(A)
• RF frequency range ~ 516...865 MHz
• Audio-XLR connector ~ 3,5 mm jack
• Antenna connector ~ 2 BNC, 50 Ω
• Switching bandwidth ~ 42 MHz
• Dimensions
Receiver ~ 82 x 64 x 24 mm
Transmitter ~ 50 x 265 mm
• Peak deviation ~ +/- 48 kHz
• AF sensitivity ~ 2,1 mV/Pa
• RF output power ~ 30 mW
• Weight
Receiver: ~ 160 g
Transmitter ~ 450 g
• Microphone ~ dynamic
• Compander ~ HDX
• Presets ~ 12
