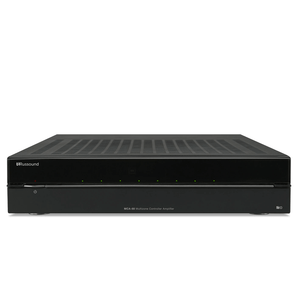

Russound MCA-88 ~ 8 Source, 8 Zone Controller Amplifier
• Up to 8 Line-Level Stereo Inputs, 3 Digital Coaxial and 1 Optical
• Paging System Support with Dedicated 12v Trigger Input
• Home Theater 12v Trigger In/Out for Shared Sources
• Voice Control is available using Amazon Alexa
• 6 Routed IR Outputs, plus 1 Global IR Output
• Rackmountable with Rack Mount Ears Included
• Supports Bluetooth® with Optional BTC-1X
• Removable Screwless Speaker Connectors
• Supports KNX® with Optional KNX-RIO-1
• Fixed/Variable Line Out for All Zones
• Expandable to up to 48 Zones
• 6 Amplified Zones @40W/ch
• RS232 and IP Controllable
• Global 12v Trigger Output
• Two-Year Limited Warranty

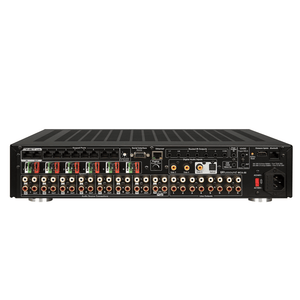

• Audio Source Inputs ~ 8 stereo RCA Line-Level, 3 coax, 1 optical (maximum of 8 total inputs)
• Audio Output(s) ~ 6 Speaker Level 40W/ch (8 Line Level, fixed or variable selectable)
• Shipping Dimensions (W x H x D) ~ 21.0" x 10.3" x 20.1", (53.3 x 26.0 x 51.1 cm)
• Total Harmonic Distortion ~ <0.05%, 1W output into 8 ohms 20Hz-20kHz
• Frequency Response ~ 20Hz-20kHz +/- 1 dB at 1W output into 8 ohms
• Signal to Noise Ratio ~ 93 dB unweighted, 96 dB A-weighted
• Communication Ports ~ 1 Serial RS-232, 19.2 kHz baud rate
• Home Theater Trigger Input ~ In/Out, 12VDC (pass-through)
• Speaker Connection(s) ~ 6 detachable 4 pole connectors
• Communication Ports ~ 1 Ethernet RJ-45, 10/100 Base T
• Power Output ~ 40W RMS into 8 ohms x 12 channels
• Communication Ports ~ USB (firmware update only)
• Fuse Rating ~ 220-240V/T3.15A 250V International
• Fuse Rating ~ 100-120V/T5.0A 250V US and Canada
• Communication Ports ~ 2 RJ-45 RNET Links In/Out
• Power Supply ~ 220-240 VAC, 50Hz (MCA-88i)
• Power Supply ~ 100-120 VAC, 60Hz (MCA-88)
• Keypad Ports ~ 8 RJ-45 T568A Standard
• Shipping Weight ~ 34.0 lbs (15.4 kg)
• IR Outputs ~ 6 routed, 1 common
• Paging Trigger ~ In, 12VDC
In the Box
• Six 4-pin speaker terminal blocks
• 71 inch AC Power cord (IEC 3-pin)
• Ten 12mm machine screws
• 2 Rack-mount ears
