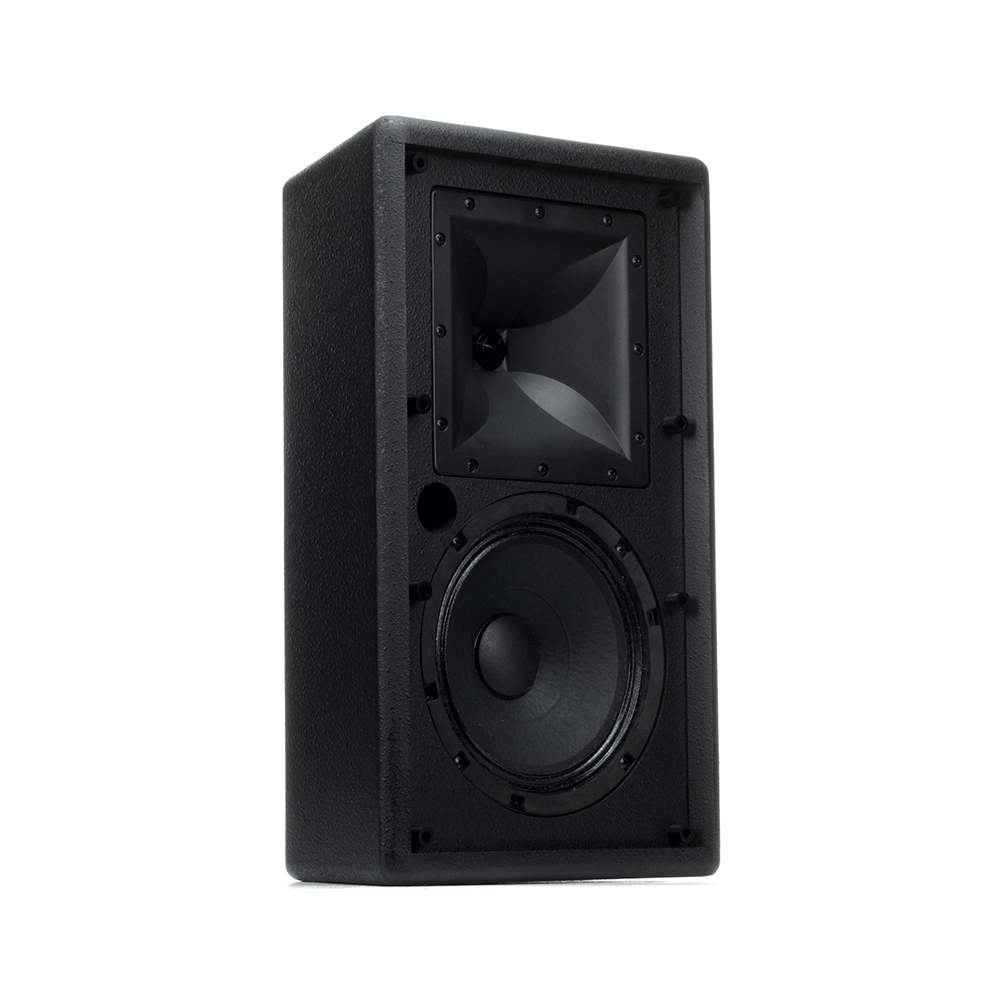

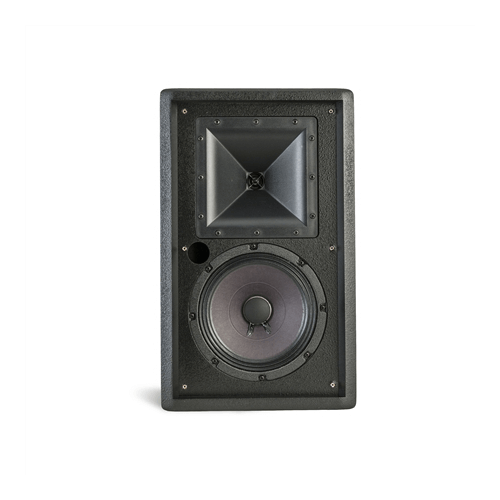

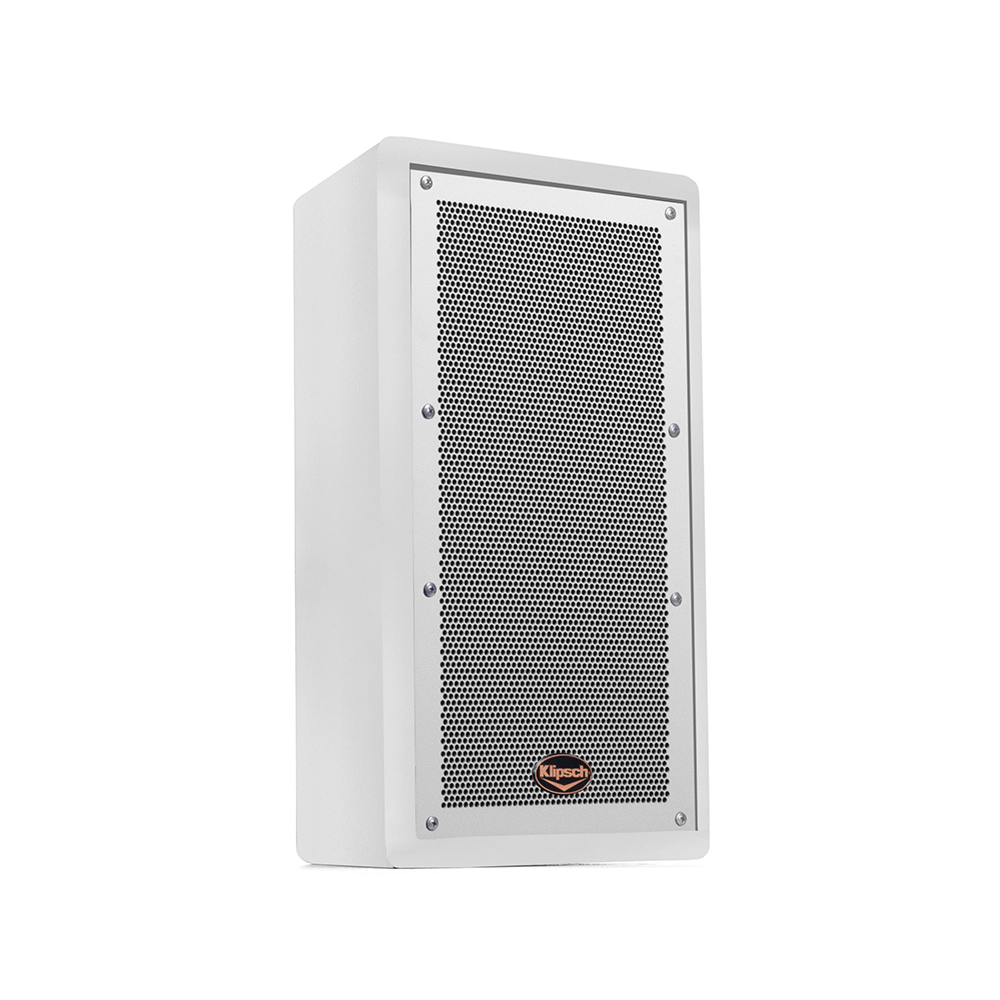

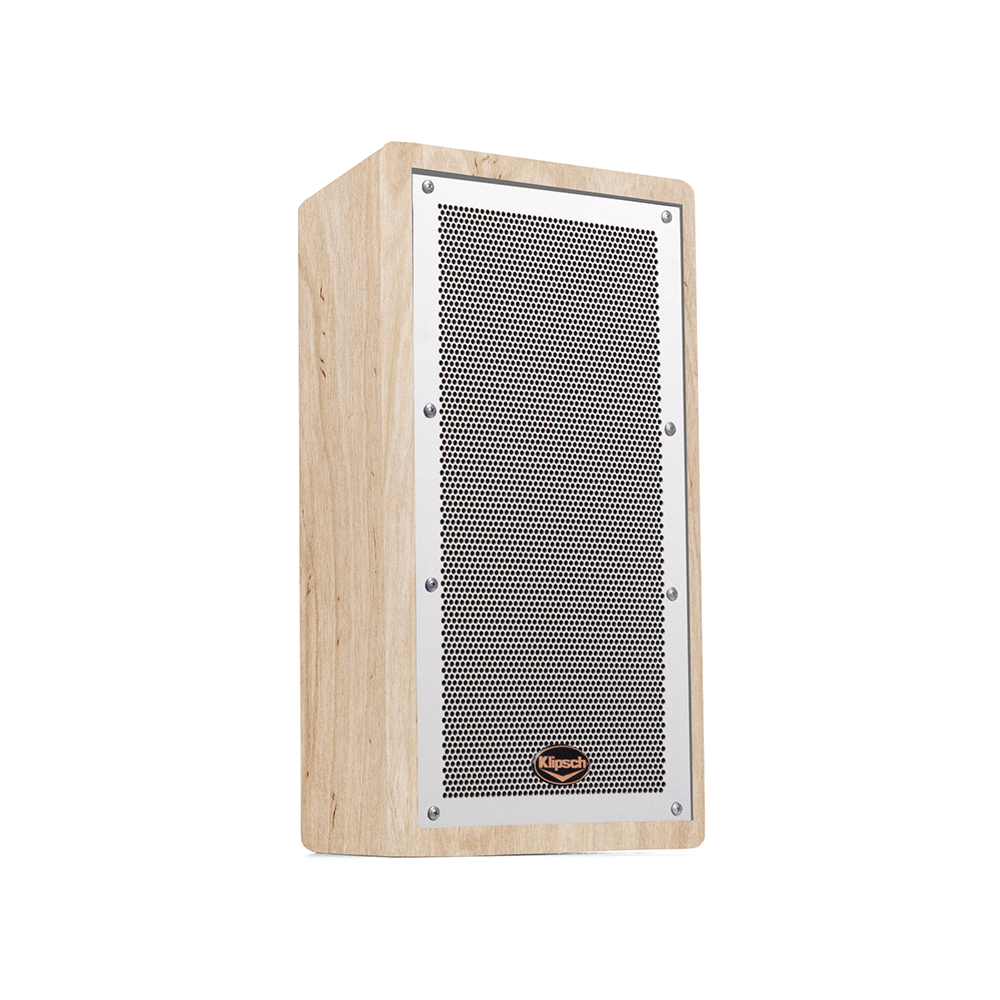

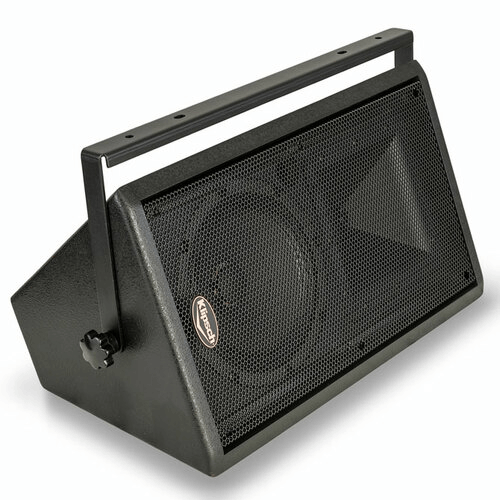

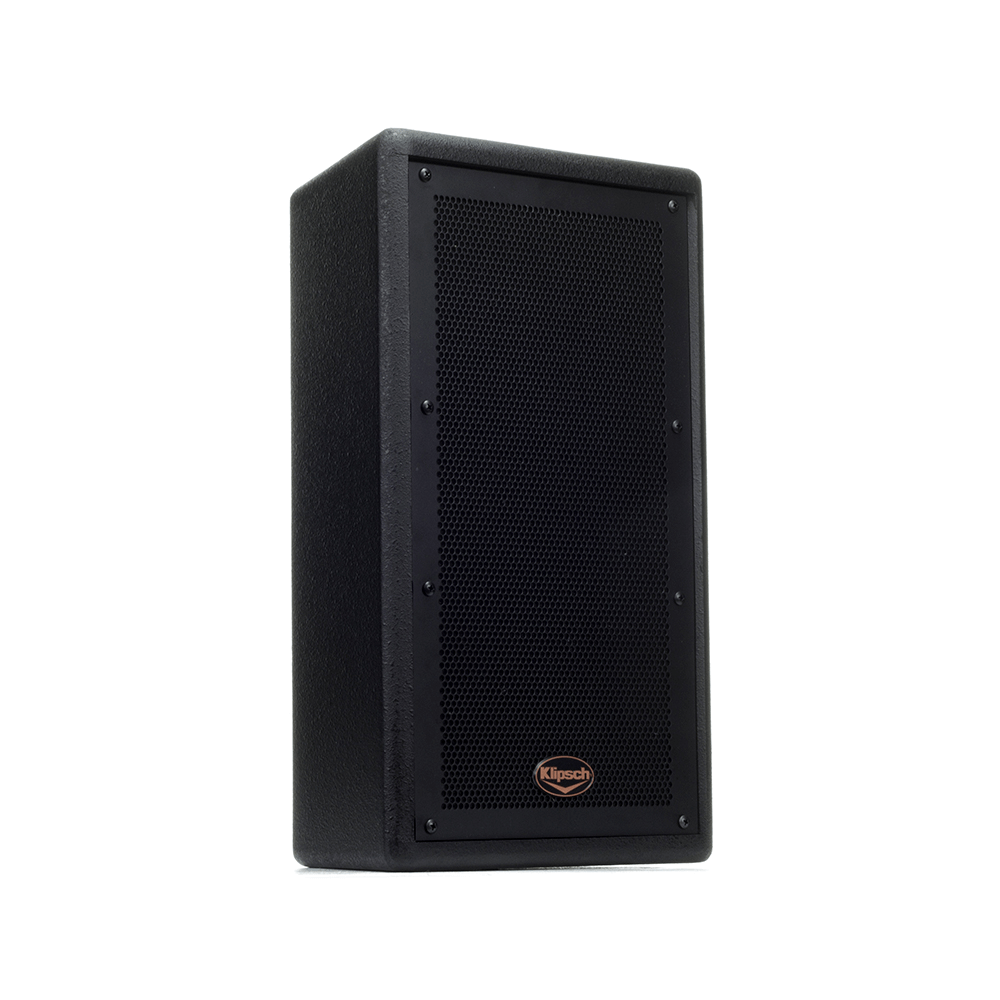

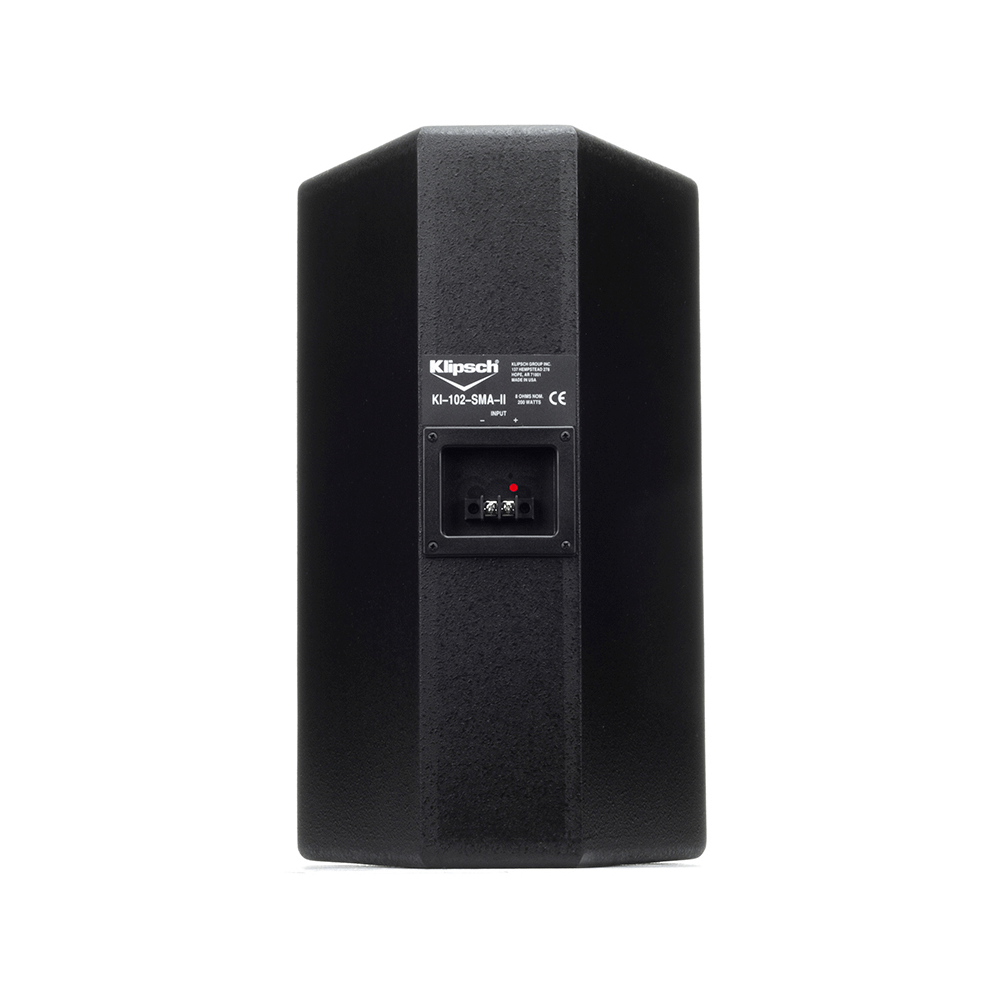

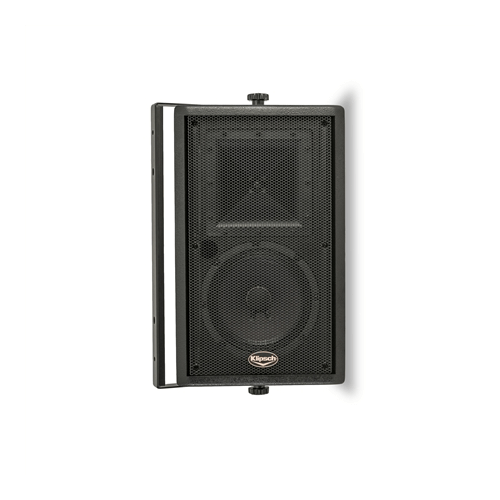

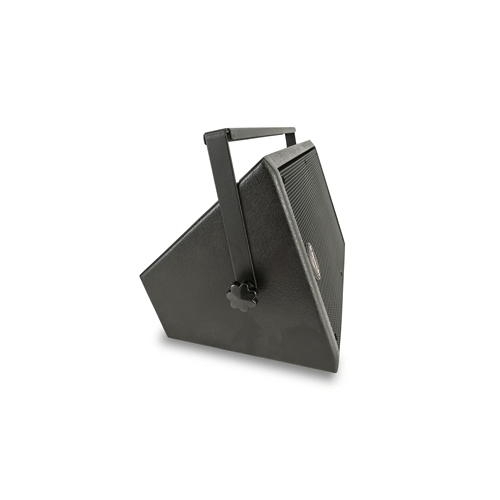

Klipsch Commercial Trapezoidal 2-Way Speaker w/ 70-Volt Transformer
These compact two-way trapezoidal loudspeakers are capable of great voice and music performance in limited-space venues.
Perfect to use in restaurants, clubs, schools, churches, health clubs and corporate environments, places where quality sound is required.
Featuring a hybrid Tractrix “Mumps” Horn that improved coverage control when compared to older generation Tractrix Horns.
The CNC fabrication techniques dado “lock-tab” and rabbet joint construction that makes the speaker rugged and free from resonance.
FEATURES
• CNC fabrication for rigidity and sound resonance
• Hybrid Tractrix Horn that improve sound coverage
• 70V / 60W Transformer
SPECIFICATIONS
• Frequency Range ~ High: (1) K-103-TI-KP 1” titanium compression driver on a K-802-M horn
Low: (1) K-81-ST 8" woofer
• Frequency Response ~ 88 Hz - 17 kHz (-10 dB @ 56 Hz) ± 3 dB
Directivity Index: 7 dB ± 1 dB 1 kHz - 17 kHz
Directivity Factor: 5
• Speaker Dispersion Angle ~ Horizontal: 90° ± 20º 2.1 kHz - 19 kHz
Vertical: 90° ± 30º 2.5 kHz - 19 kHz
• Overload Protection ~ KLIP Overload Protection Circuit-HF
• Nominal Impedance ~ 8 Ohms, minimum 4.9 ohms @ 184 Hz
• Dimensions (H x W x D) ~ 18.9 x 11.6 x 9.3 inches
• Transformer Tap Settings ~ 70V / 60W Transformer
• Maxiumum SPL ~ 115 dB Continuous, 121 dB Peak
• Construction ~ Enclosure: 3/4" MDF
• Crossover Frequency ~ 2kHz
• Power RMS ~ 200 watts (31V)
• Sensitivity ~ 95 dB
• Power Peak ~ 800W
• Weight ~ 24 lbs
