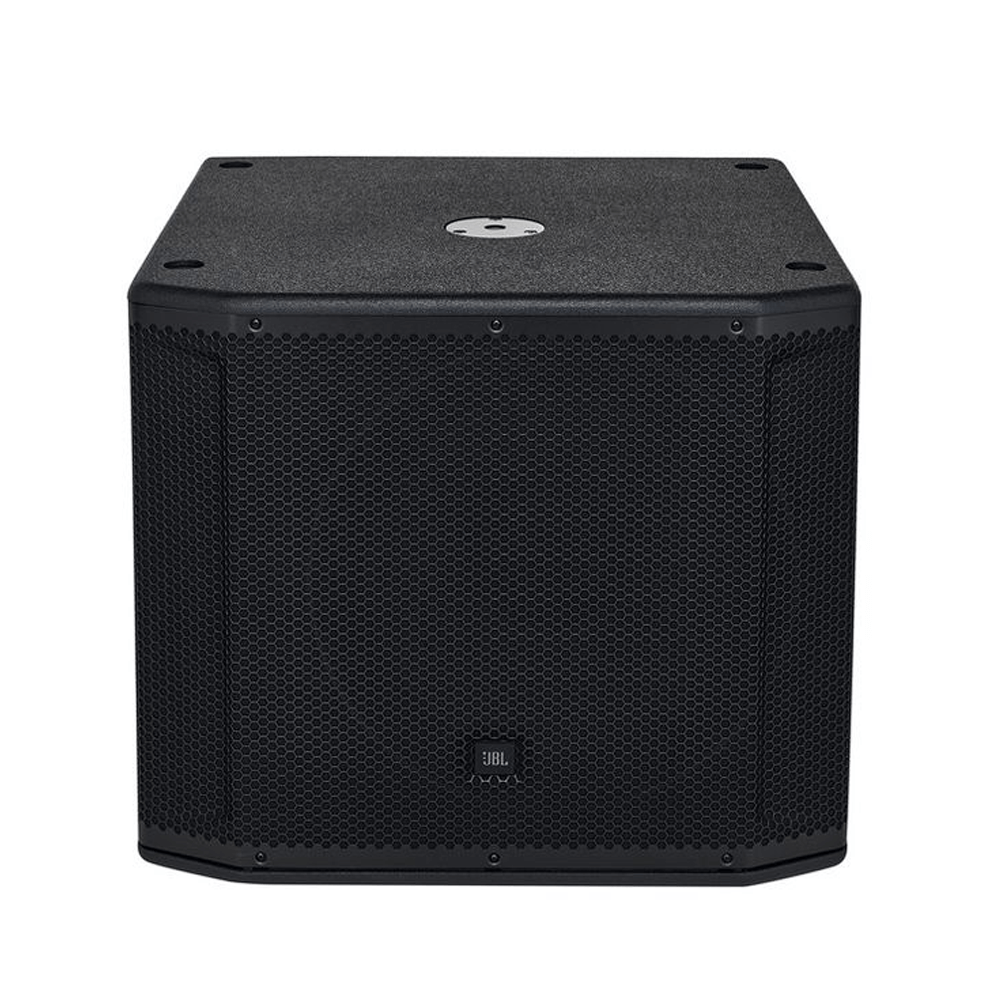

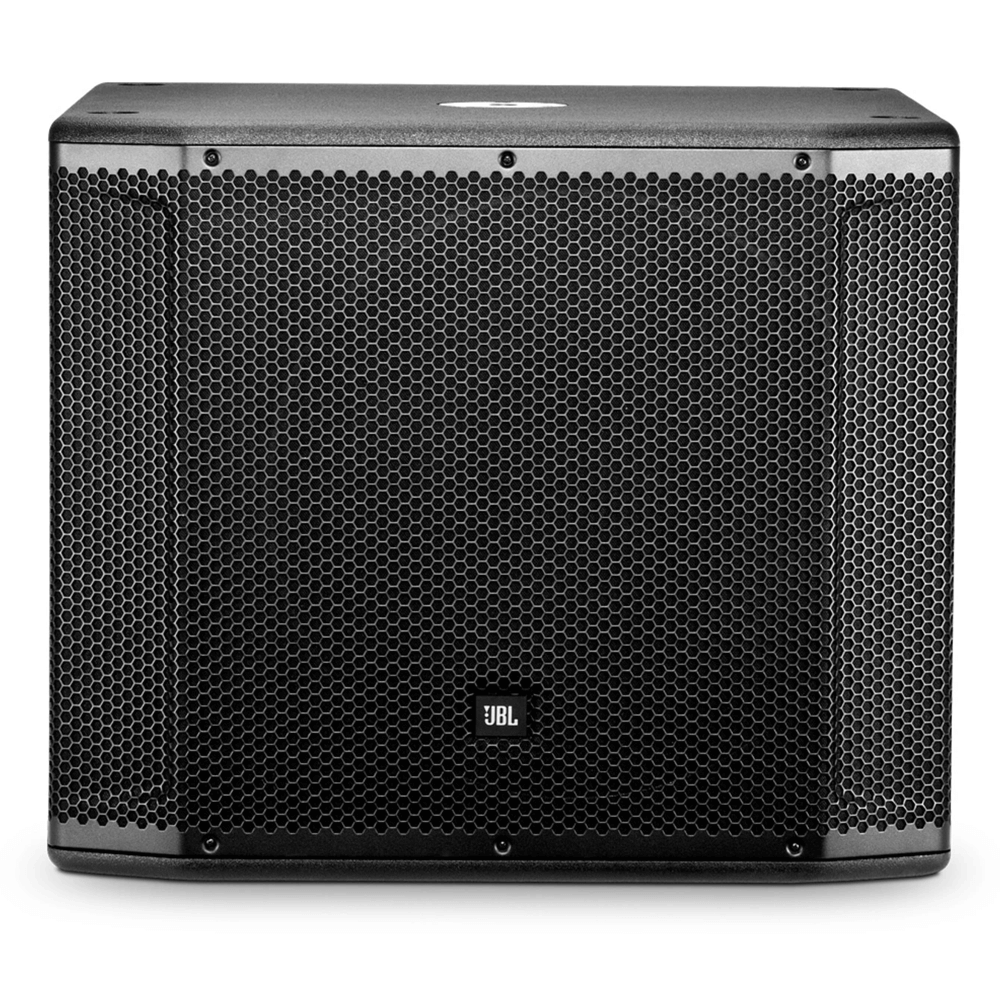

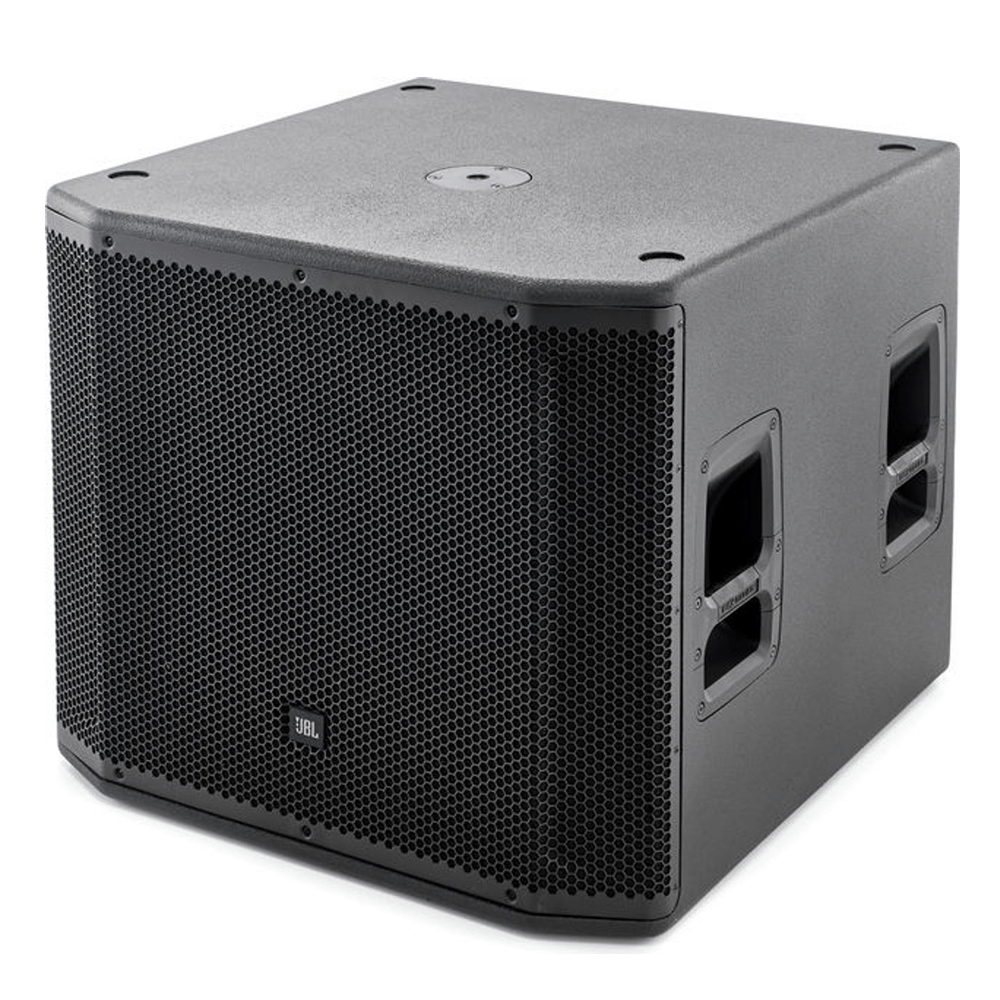

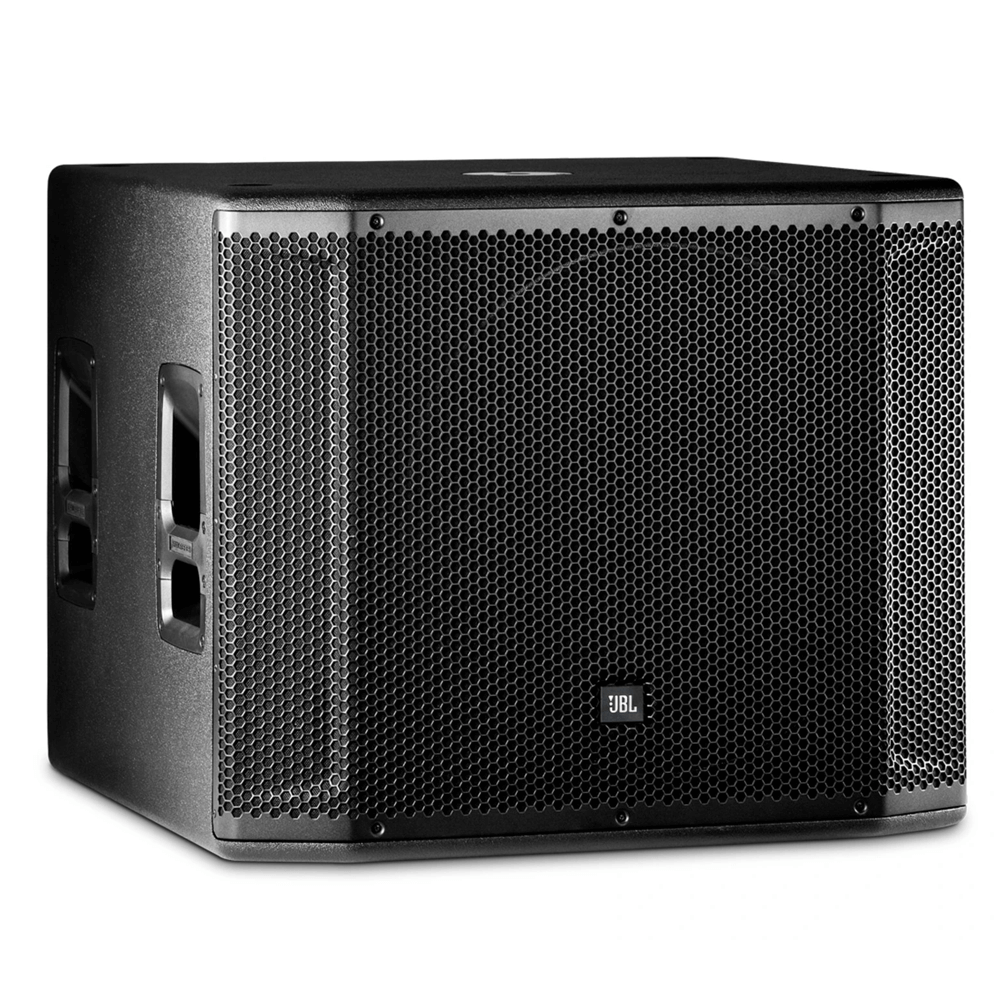

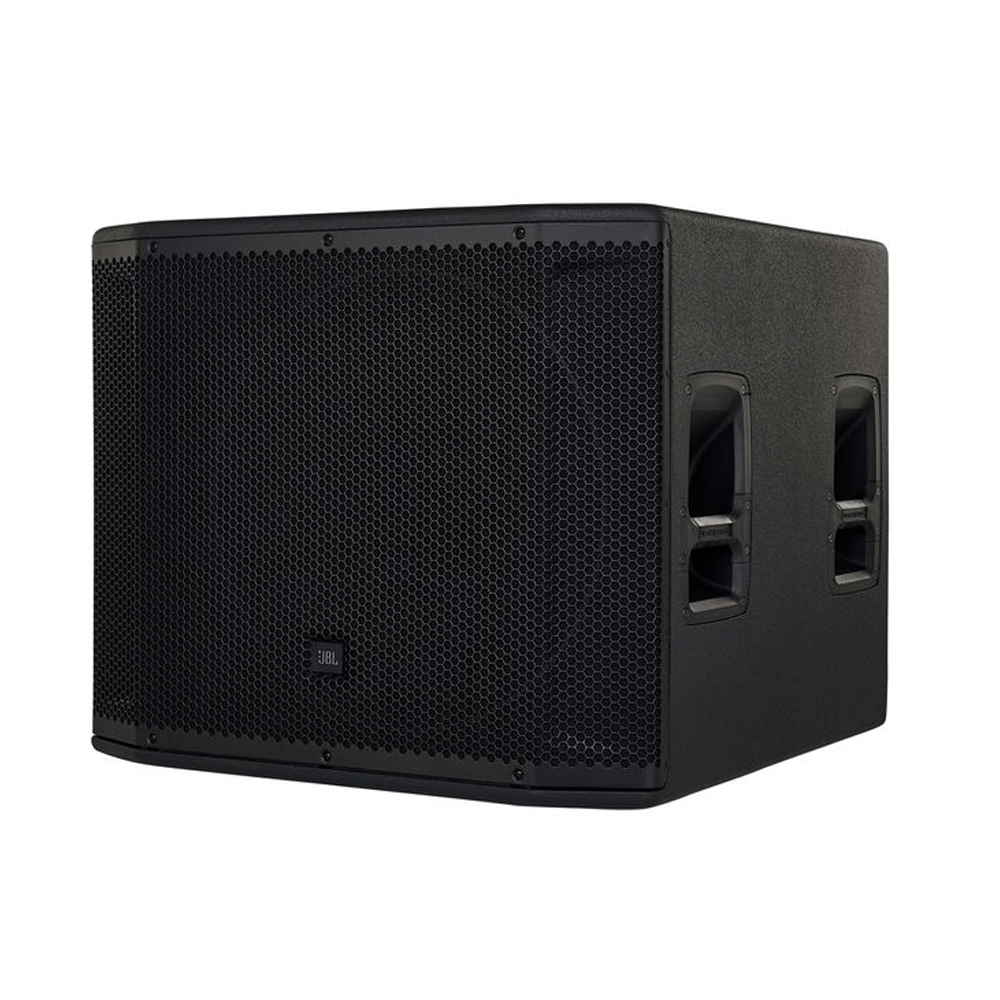

JBL SRX818S 18-inch Passive Subwoofer

FEATURES

• Differential Drive® Technology — Utilizes JBL’s patented Differential Drive drivers with lightweight ferrite magnets and 3″ voice coil for increased efficiency and reduced distortion.
• Tunings & Presets Available — Supported presets for Crown amps (e.g., ITech HD / XTI 2) and dbx signal processors integrate the sub into larger systems with optimal performance.
• Flexible Deployment — Features M10 suspension points, indexing feet for standard or cardioid stacking, and a standard M20 pole cup for mounting additional tops.
• Powerful Low-Frequency Output — Delivers strong, deep bass with a large 18″ woofer (model 2279H) engineered for low distortion and extended LF response.
• Passive Design for Flexibility — Passive subwoofer can be driven by external amplifiers, allowing system designers to tailor power and DSP as needed.
• Purposeful, Road-Ready Design — Built with rugged 18 mm plywood enclosure and Obsidian DuraFlex™ finish to withstand touring and heavy use.
• Professional System Integration — Fully supported in JBL’s Audio Architect system-design software for advanced setup and control.
• High Power Handling — Handles up to 2400 W peak, 1200 W program, and 600 W continuous power for robust performance.
• Strong SPL Capability — Produces up to 129 dB peak sound pressure level for impactful coverage in large venues.
• Wide Low-End Frequency Range — Supports 28 Hz – 150 Hz (–10 dB) response for deep sub-bass performance.

SPECIFICATIONS

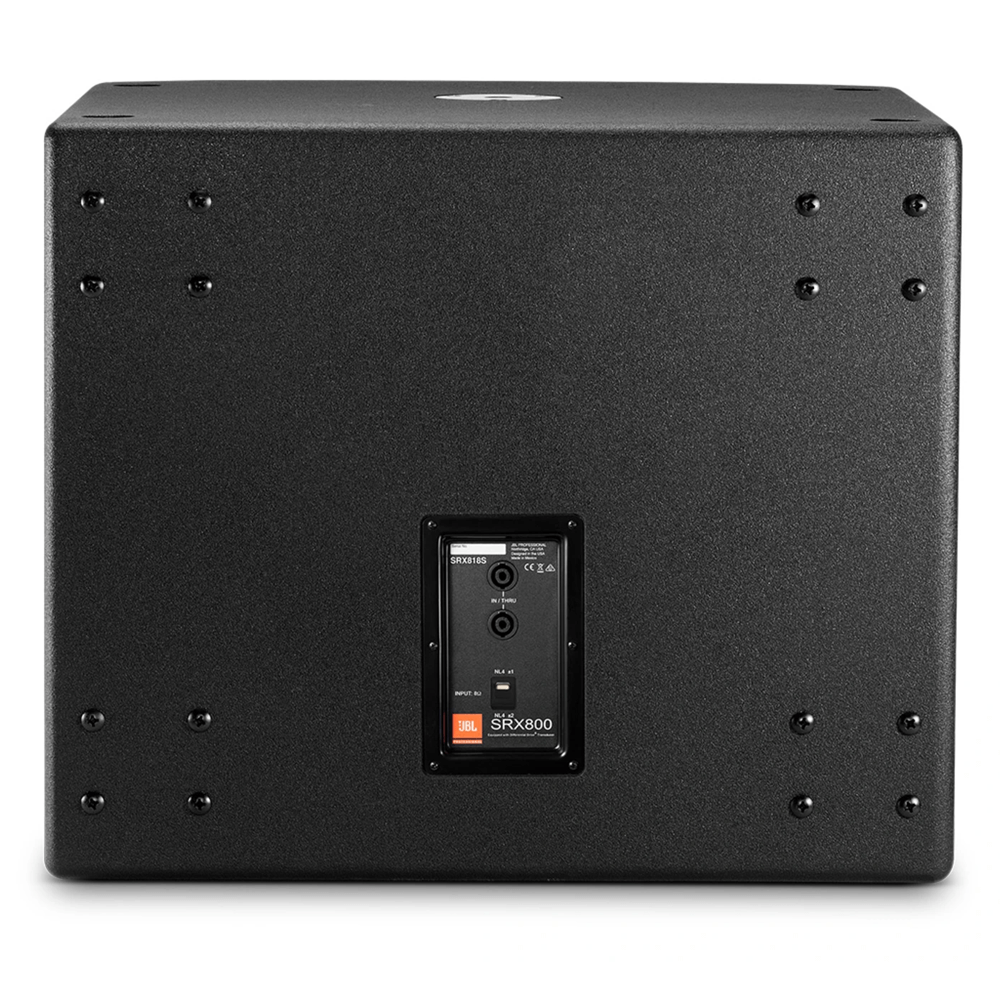

• Inputs - NL4 (Speakon) input and NL4 loop-through (±1 or ±2 selectable)
• Dimensions (H × W × D) - 26.9″ × 26.9″ × 22.6″  (683 × 684 × 575 mm)
• Enclosure Material - 18 mm plywood with Obsidian DuraFlex™ coating
• Grille - Powder-coated steel with acoustically transparent cloth
• System Type - Passive 18″ subwoofer system (bass-reflex design)
• Crossover Frequency - ~80 Hz (internal passive alignment)
• Operational Mode - Passive (requires external amplifier)
• Frequency Response (±3 dB) - 45 Hz – 150 Hz
• Frequency Range (–10 dB) - 28 Hz – 150 Hz

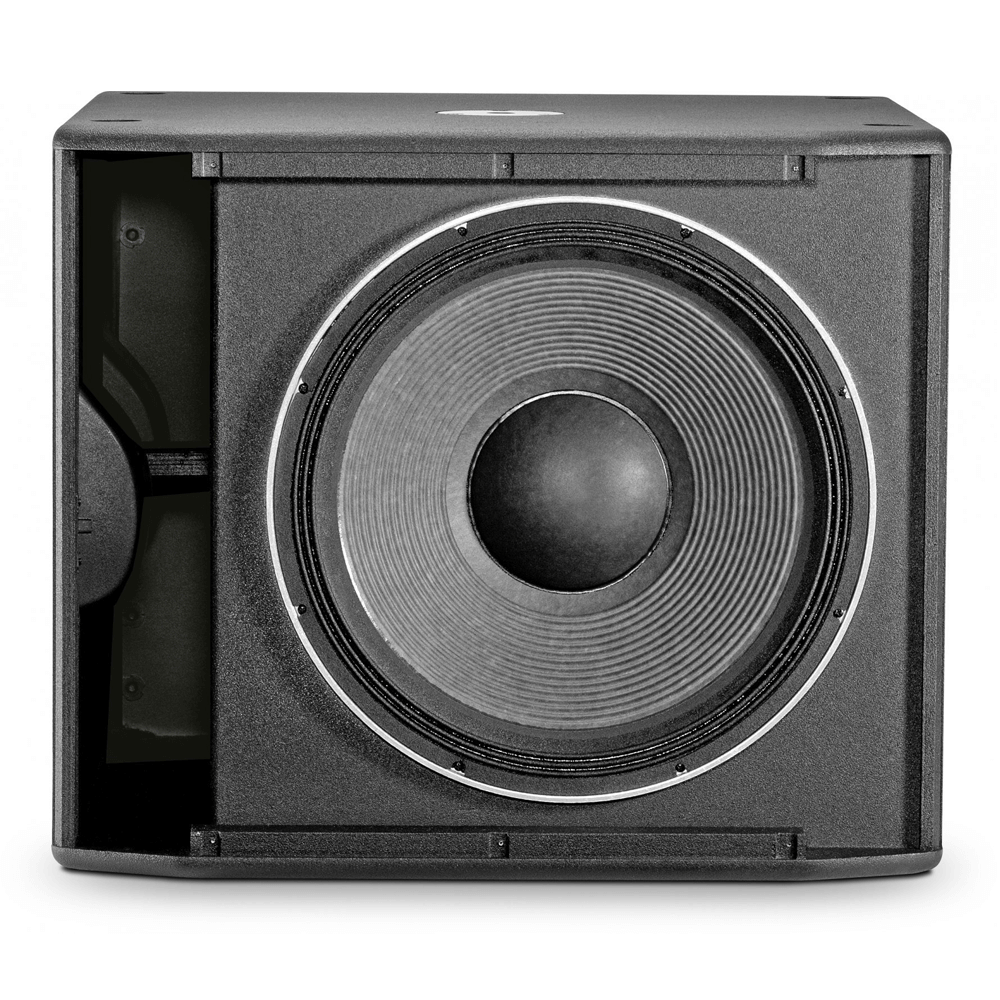

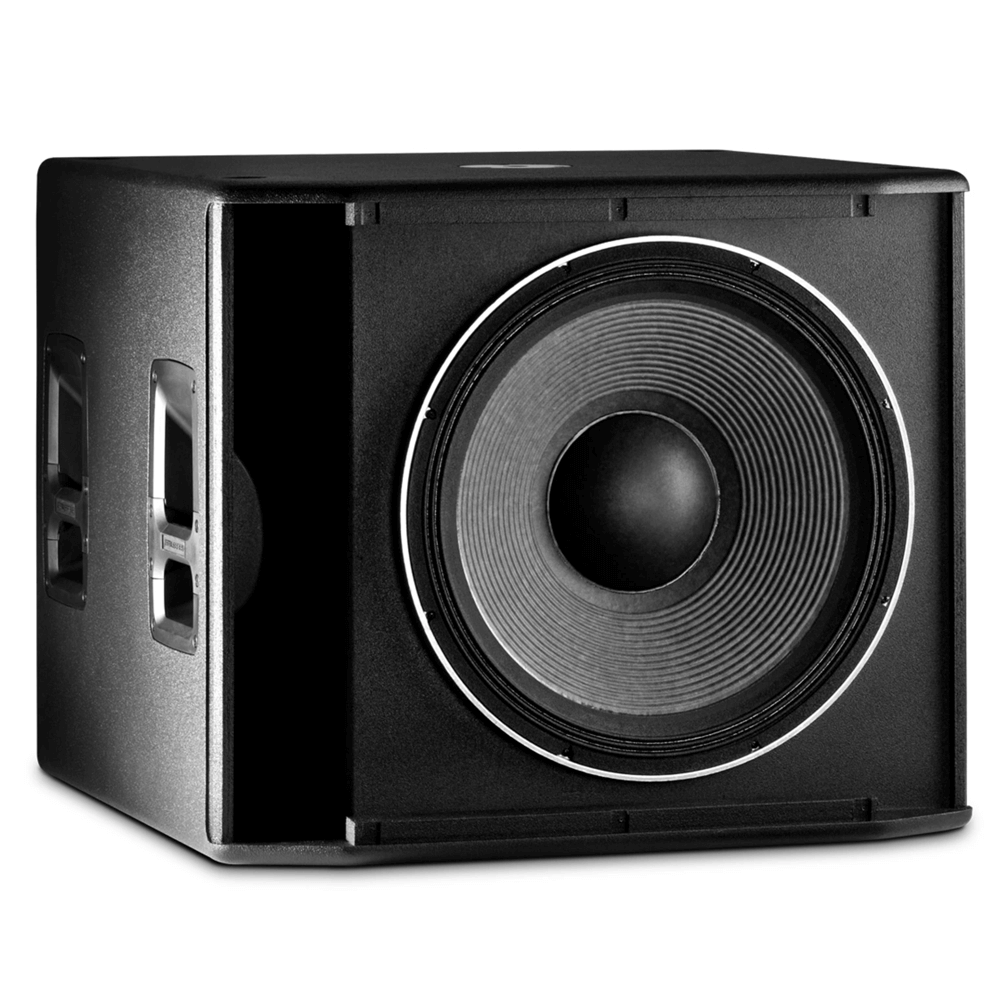

• LF Driver - 1 × 18″ woofer (JBL 2279H)
• Pole Mount - M20 threaded pole socket
• Sensitivity - ~95–96 dB (1 W/1 m)
• Power Handling:
                - 600 W Continuous
                - 1,200 W Program
                - 2,400 W Peak
• Maximum SPL (Peak) - ~135 dB
• Finish - Obsidian DuraFlex™

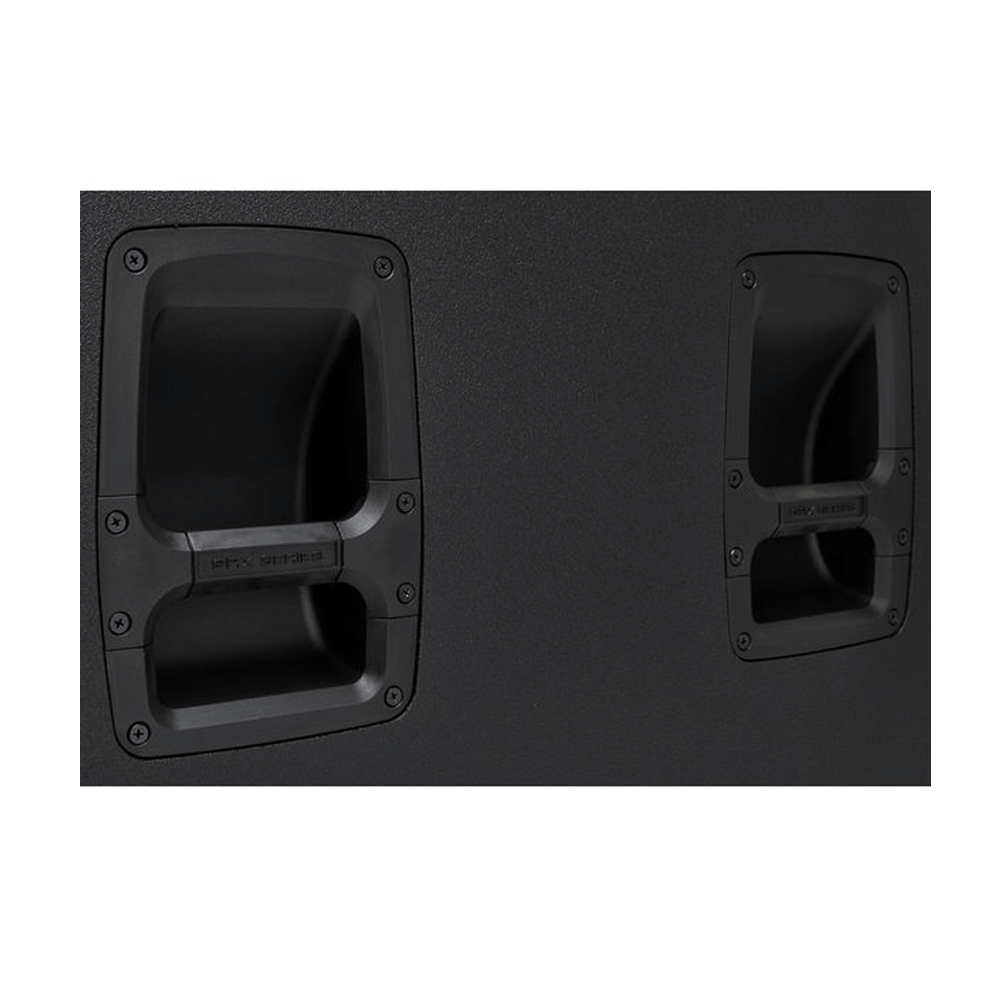

• Handles - 4 rugged handles
• Nominal Impedance - 8 Ω
• Weight - 78 lb (35.4 kg)
• UPC - 691991001659

IN THE BOX

• 1 × SRX818S 18″ passive subwoofer cabinet
• Owner's manual
