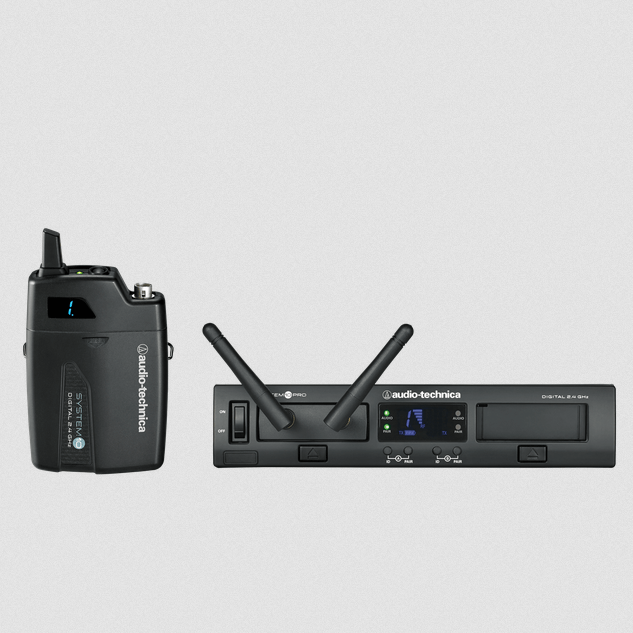

Audio-Technica ATW-1301 Digital Wireless Bodypack w/ Rack Mount System
System 10 PRO digital wireless systems a great choice for any type of live performance, houses of worship, and A/V rental companies.

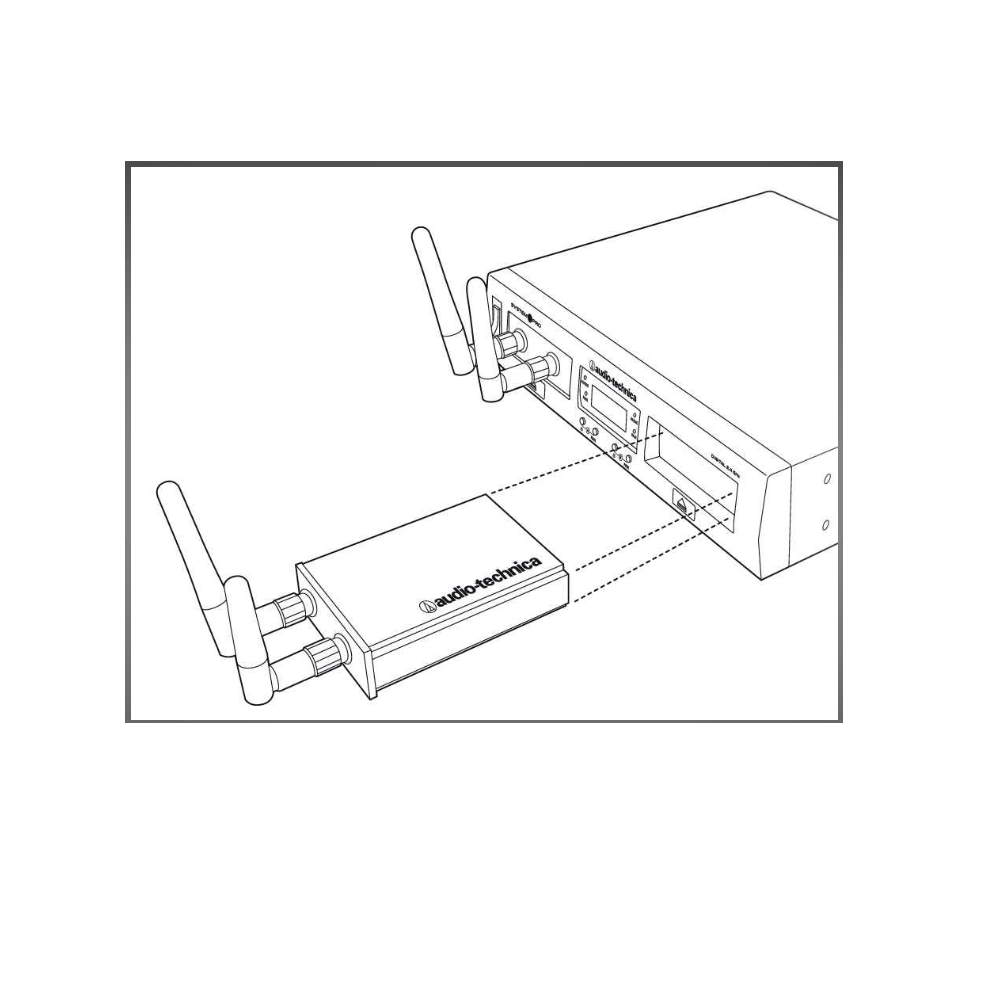

Offers a remotely mountable receiver that functions at an advanced 24-bit/48 kHz in the 2.4GHz range. The receiver simply ejects from the the chassis and connects via Ethernet cable up to 300' from your mix position, allowing for ideal placement and ensuring reliable wireless microphone signal. Offering all the advantages of high-quality, professional gear at an extremely affordable price makes Audio-Technica's

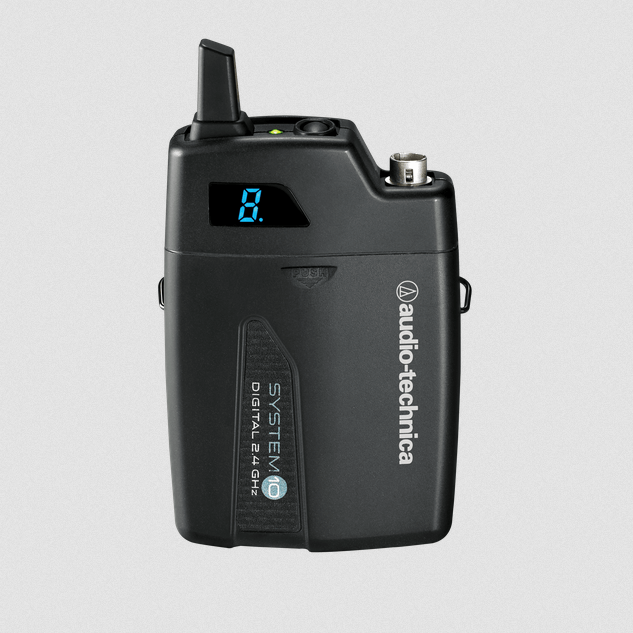

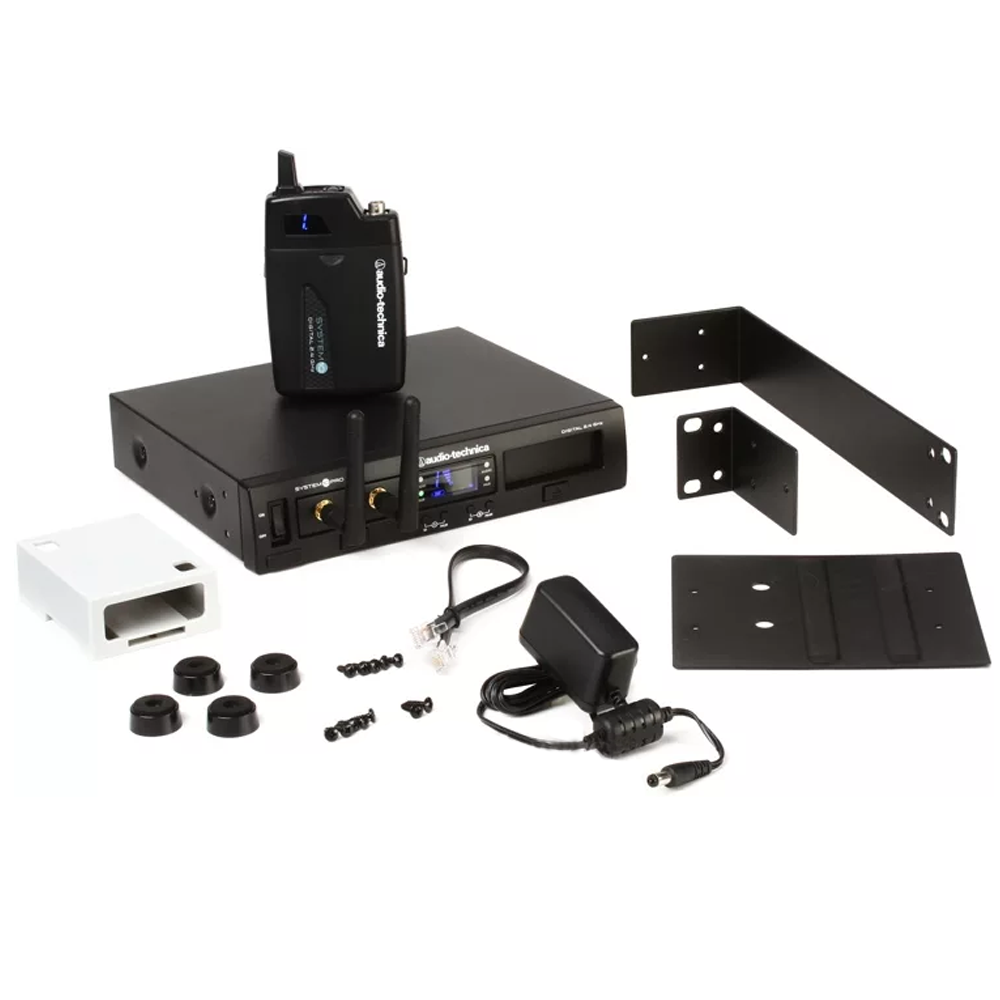

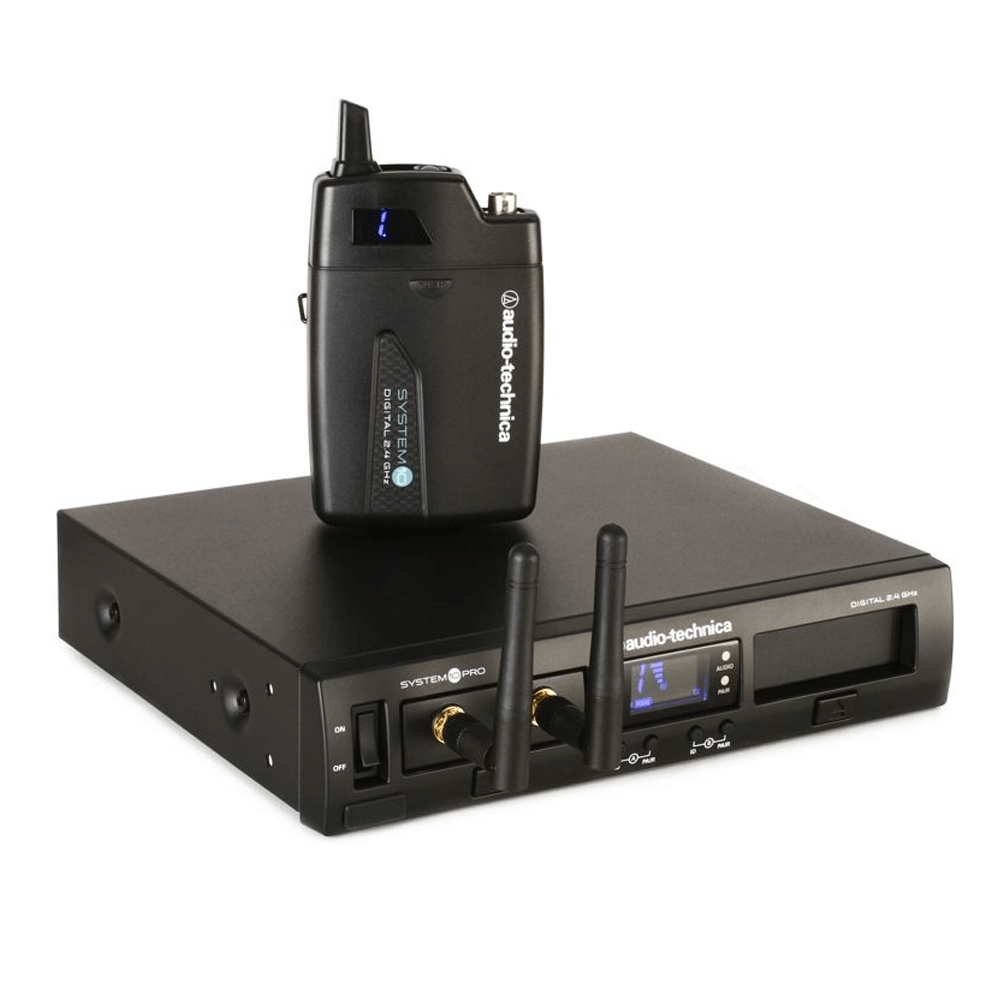

Your new system includes the ATW-RC13 receiver chassis, a ATW-RU13 receiver unit, and an ATW-T1001 UniPak bodypack transmitter to give you a complete wireless system that's ready for the UniPak-terminated mic of your choice. You also get the brackets you need to mount the chassis in your rack along with a joining plate for conveniently installing two chassis units in a single rack space. As for mounting the receiver - the included brackets let you position it, well, anywhere you want!
This wireless unit automatically determines and sets the best open channel for your space - which is great whether you're running an installed system or mixing a different room every day. This is also very useful when employing multiple wireless systems, thereby avoiding interference and intermodulation. When there is a need to utilize multiple wireless systems simultaneously, up to ten channels/units may be used together without any frequency coordination problems or group selection issues. Both the receiver chassis and transmitter feature easy-to-read LCD information display that provide convenient visual indications of settings and operation status, so you always know what your wireless mic is doing.
FEATURES
• Automatic frequency scanning finds an open channel at the touch of a button
• Removable receivers for remote placement up to 300' away via Ethernet
• Daisy chain up to 5 chassis and use up to 10 channels simultaneously
• Take the guesswork out of setup with instant channel selection
• Clear sound quality and rock-solid, dependable performance
• Includes RJ12 cable for system linking and AC adaptor
• Right out of the box install convenience
• 24-bit/48kHz digital wireless system
SPECIFICATIONS
Overall System
• Operating Frequencies ~ 2.4 GHz ISM band (2400 to 2483.5 MHz)
• Operating Temperature Range ~ 32° F to 104° F
• Total Harmonic Distortion ~ <0.05% typical
• Frequency Response ~ 20 Hz to 20 kHz
• Operating Range ~ 60 m
Handheld Transmitter
• RF Power Output ~ 10 mW
• Spurious Emissions ~ Following federal and national regulations
• Accessories Included AT8456a Quiet-Flex™ stand clamp
• Dimensions (L x D) ~ 254.8 mm x 50.0 mm
• Battery Life ~ >7 hours (alkaline)
• Battery Type ~ Two 1.5V AA
• Net Weight ~ 9.9 oz

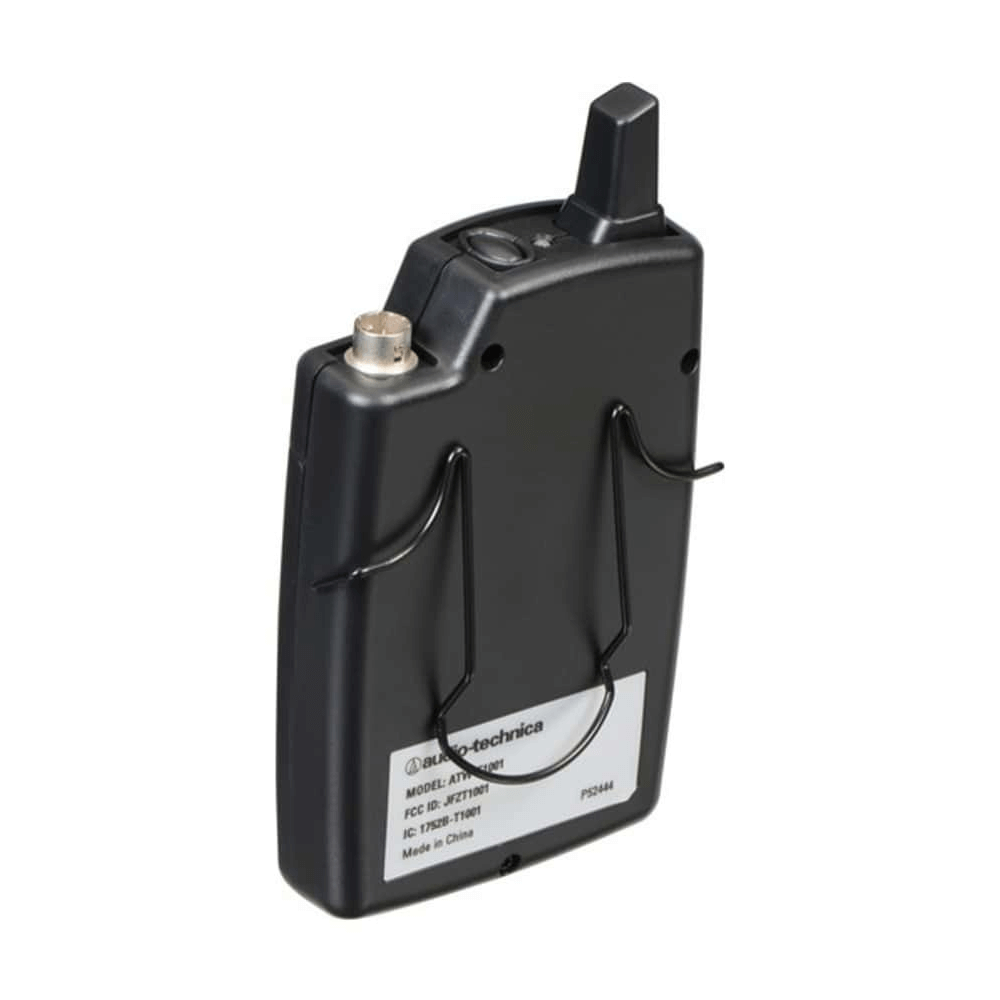

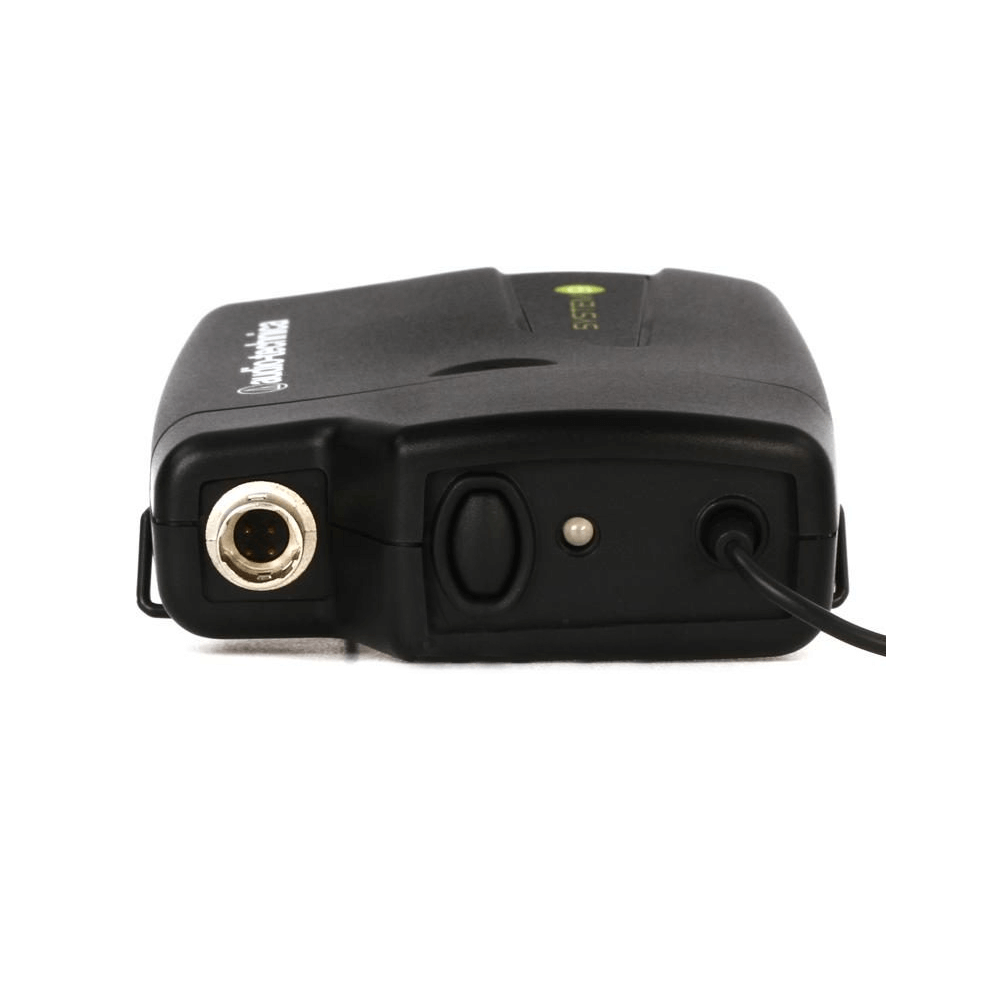

Body Pack
• Spurious Emissions ~ Following federal and national regulations
• Dimensions (W x H x D) ~ 70.2 mm x 107.0 mm x 24.9 mm

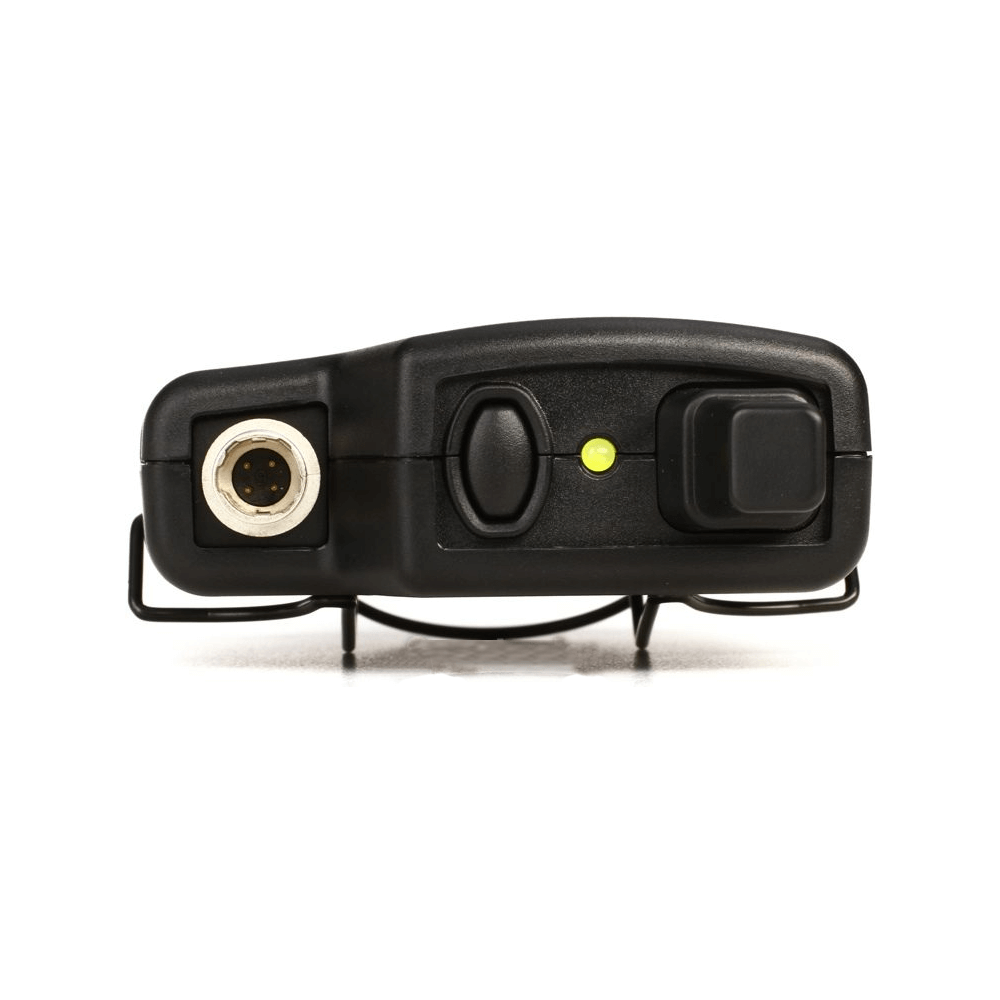

• Input Connections ~ Four-pin Locking Connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +9V
• Battery Life ~ >7 hours (alkaline)
• Battery Type ~ Two 1.5V AA
• RF Power Output ~ 10 mW
• Net Weight ~ 3.5 oz

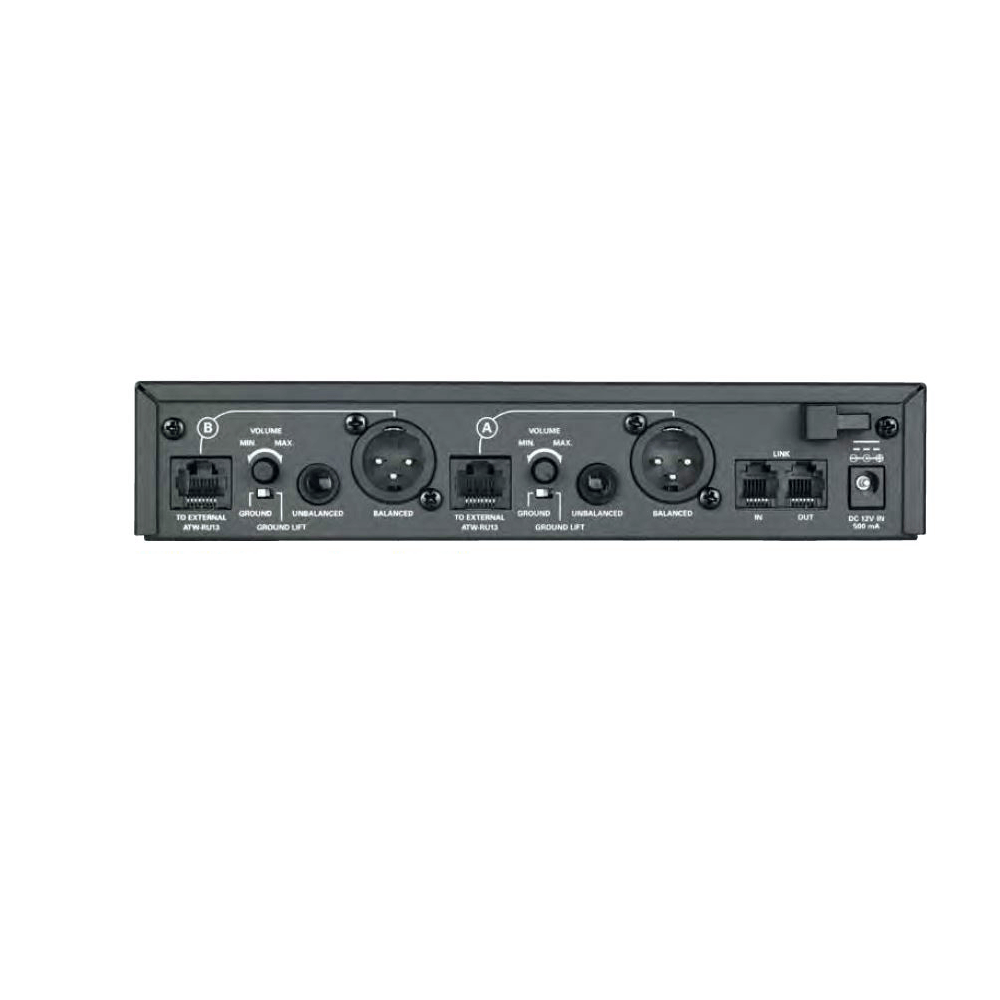

Receiver

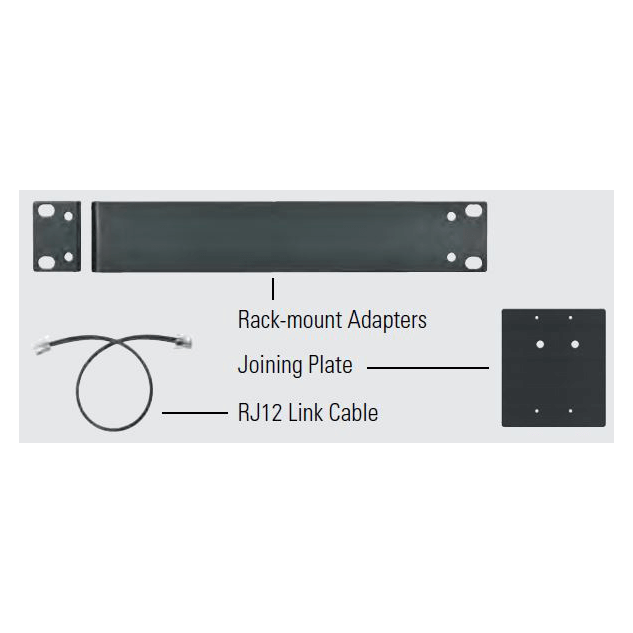

• Accessories Included ~ AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
• Power Supply ~ 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
• Maximum Output Level ~ XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
• Dimensions (W x H x D) ~ 209.8 mm x 44 mm x 169.3 mm
• Receiving System ~ Diversity (frequency/time/space)
• Operating Temperature Range ~ 40° F to 110° F
• Output Connector ~ Remote
• Receiver Connector ~ RJ45
• Link Connector ~ RJ12
• Weight ~ 33.2 oz
