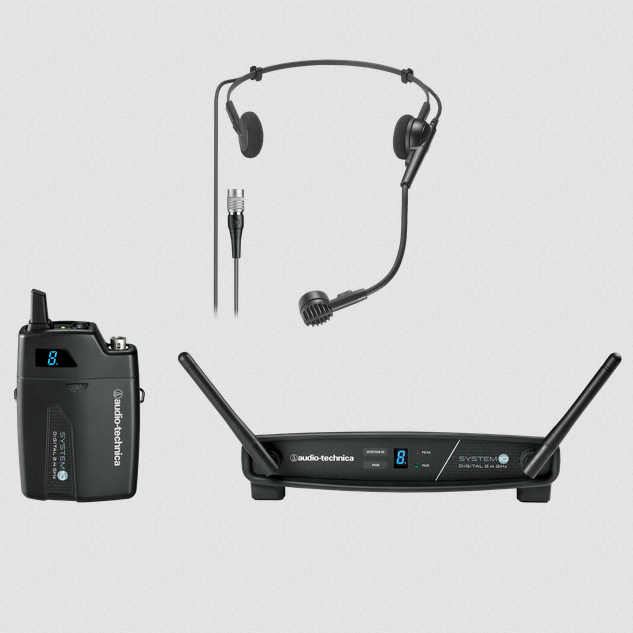

Audio Technica ATW-1101/H System 10 Digital Wireless Headworn System

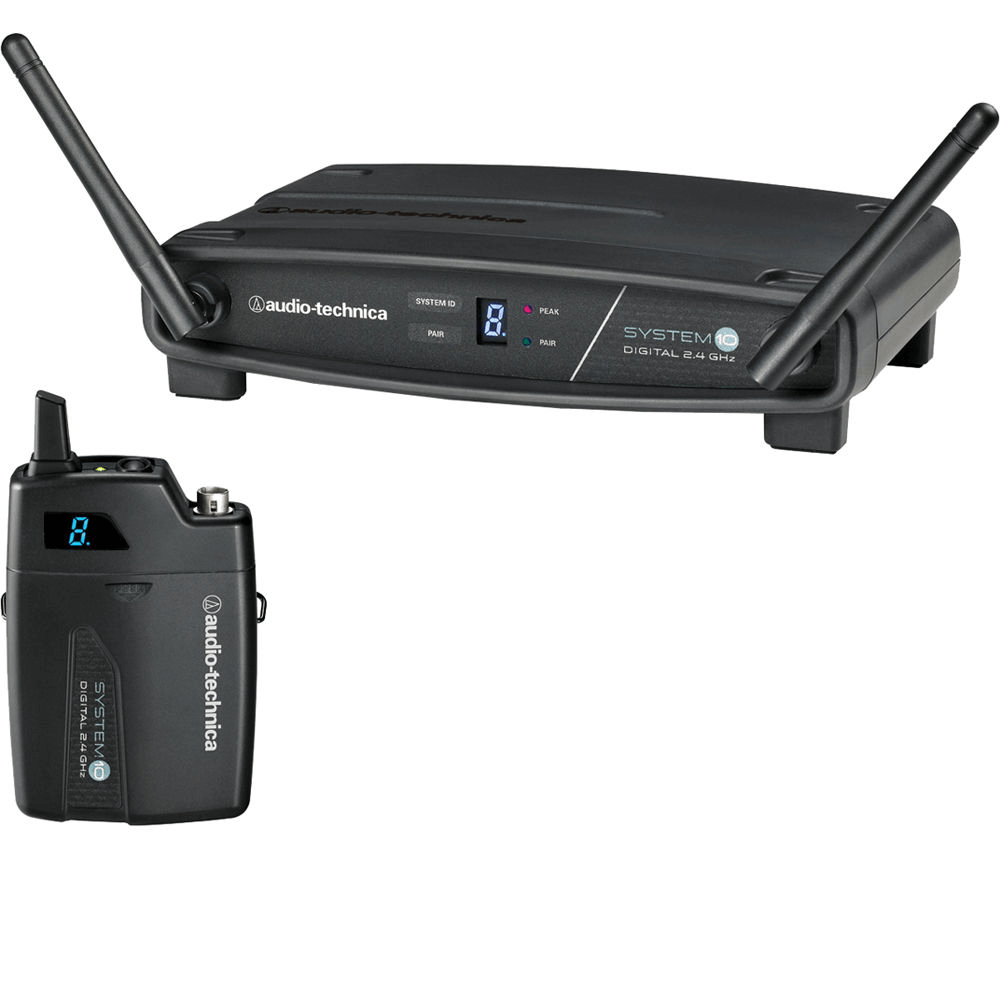

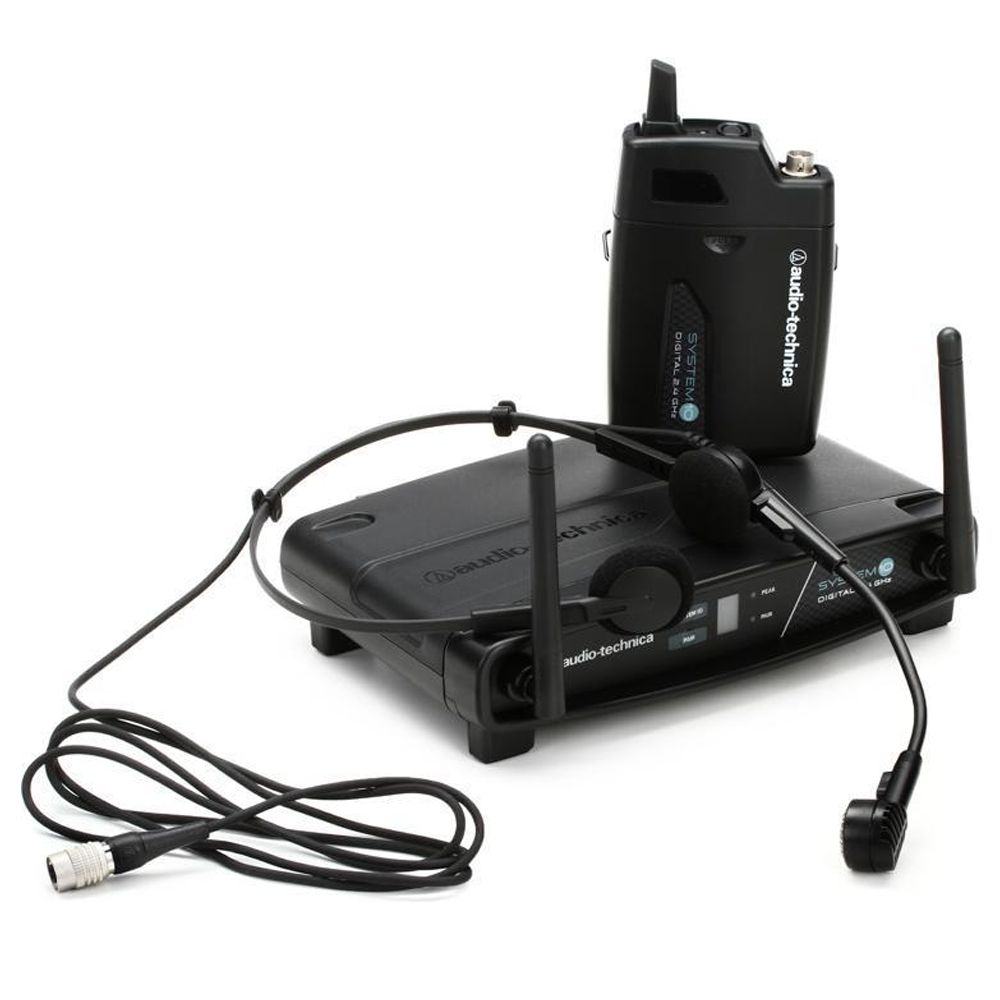

Comes with ATW-R1100 receiver and ATW-T1001 body-pack transmitter with PRO 8HEcW headworn microphone.
A digital high-fidelity wireless system designed to provide performing musicians
and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality.
Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to 8 channels may be used together without any frequency coordination problems or group
selection issues.
The receivers and transmitters offer an easy-to-read digital ID display
Features Frequency Diversity, which sends the signal on two dynamically allocated frequencies for interference free
communication.
FEATURES
• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
• Extremely easy operation with instantaneous channel selection, sync, and set-up
• Automatic frequency selection for seamless, interference-free operation
• Balanced XLR and unbalanced 1/4 output jacks with level control
• Three levels of diversity assurance: frequency, time, & space
• State-of-the-art digital receiver for reliable performance
• 2.4 GHz range completely free from TV interference
SPECIFICATIONS
Overall System
• Operating Temperature Range ~ 32° F to 104° F (Battery performance may be reduced at very low temperatures)
• Frequency Response ~ 20 Hz to 20 kHz (Depending on microphone type)
• Operating Frequencies ~ 2.4 GHz ISM band (2400 to 2483.5 MHz)
• Total Harmonic Distortion ~ <0.05% typical
• Operating Range ~ 30 m
Handheld Transmitter
• Spurious Emissions ~ Following federal and national regulations
• Accessories Included ~ AT8456a Quiet-Flex™ stand clamp
• Dimensions (L x D) ~ 254.8mm x 50.0mm
• Battery Life ~ >7 hours (alkaline)
• Battery Type ~ Two 1.5V AA
• RF Power Output ~ 10 mW
• Net Weight ~ 9.9 oz

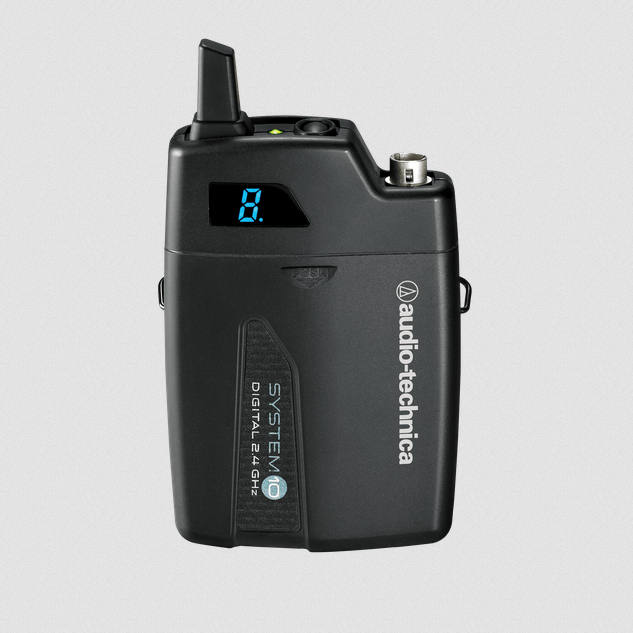

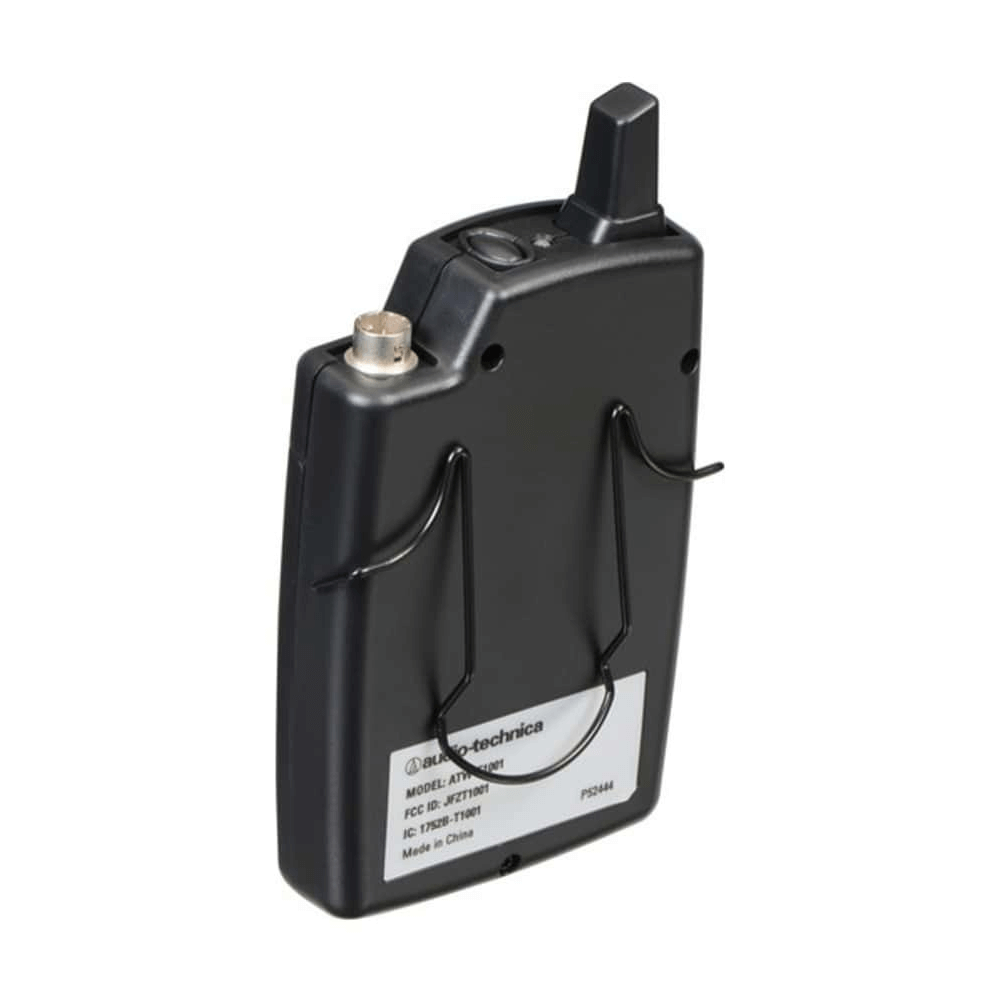

Body Pack
• Spurious Emissions ~ Following federal and national regulations
• Dimensions (W x H x D) ~ 70.2mm x 107.0mm x 24.9mm

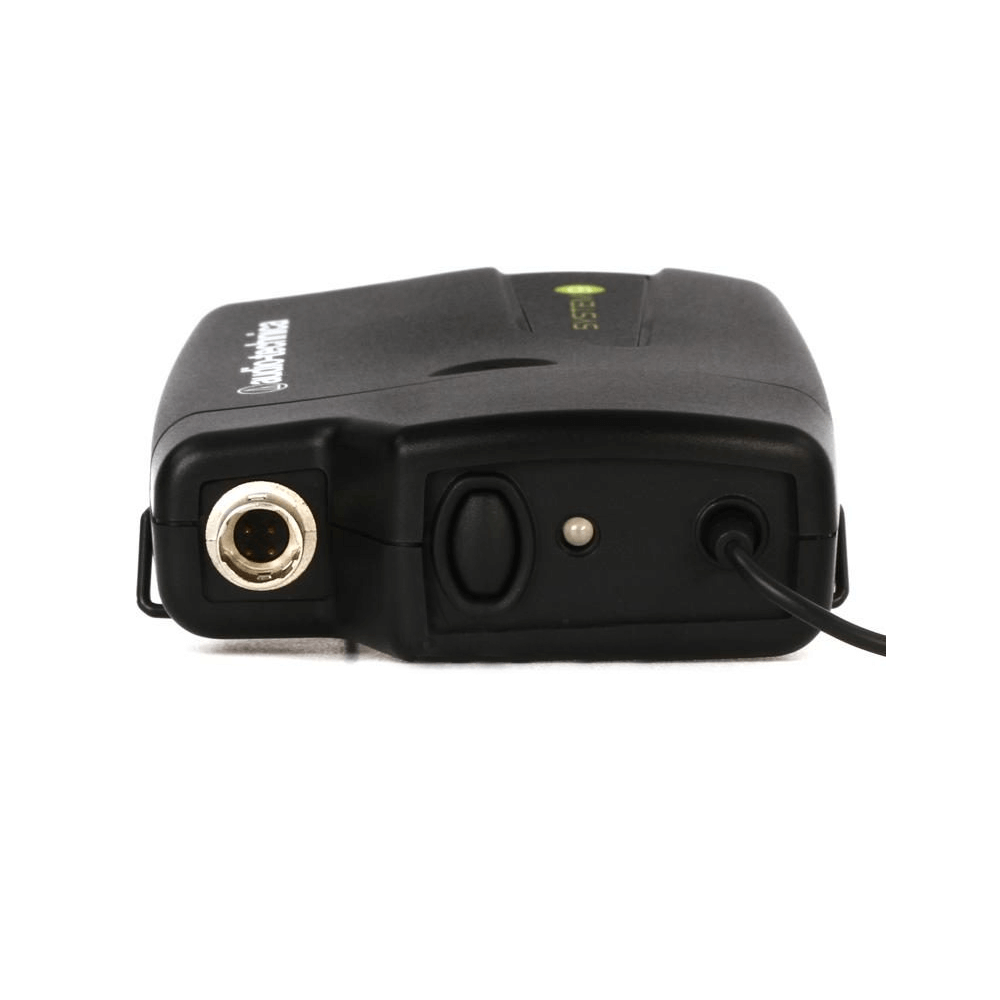

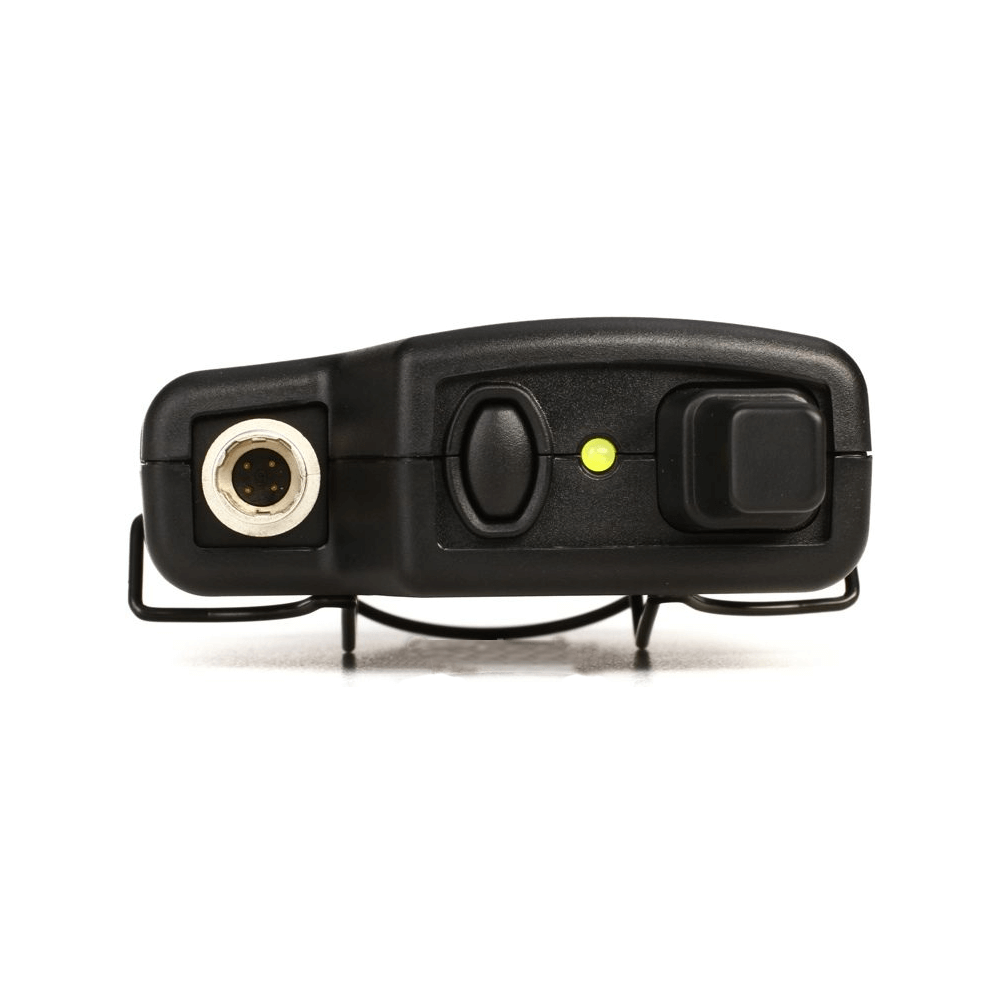

• Input Connections ~ Four-pin Locking Connector
Pin 1: GND,
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +9V
• Battery Life ~ >7 hours (alkaline)
• Battery Type ~ Two 1.5V AA
• RF Power Output ~ 10 mW
• Net Weight ~ 3.5 oz

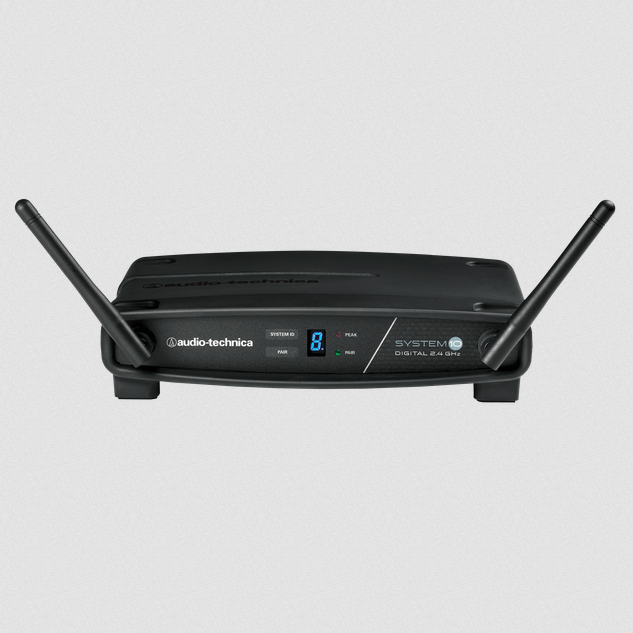

Receiver
• Power Supply ~ 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
• Maximum Output Level ~ XLR, balanced: 0 dBV, 1/4" (6.3 mm), unbalanced: +6 dBV
• Receiving System ~ Diversity (frequency/time/space)
• Dimensions (W x H x D) ~ 190.0mm x 46.2mm x 128.5mm
• Operating Temperature Range ~ 40° F to 110° F

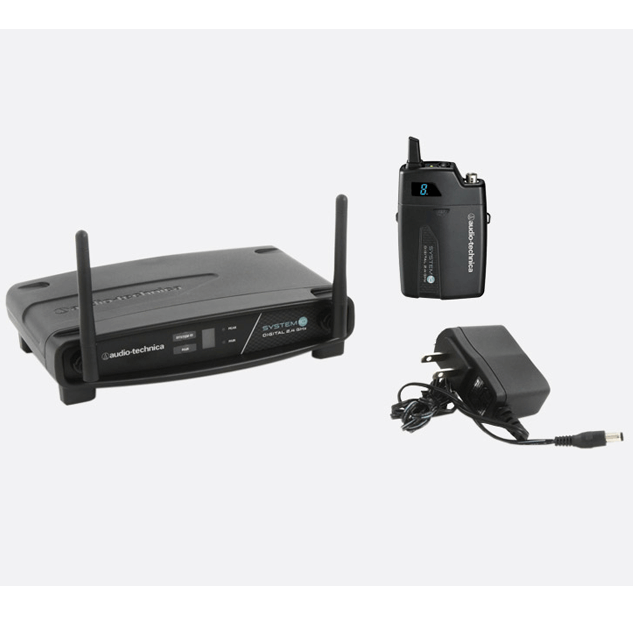

• Accessories Included ~ Power supply
• Weight ~ 10.2 oz
