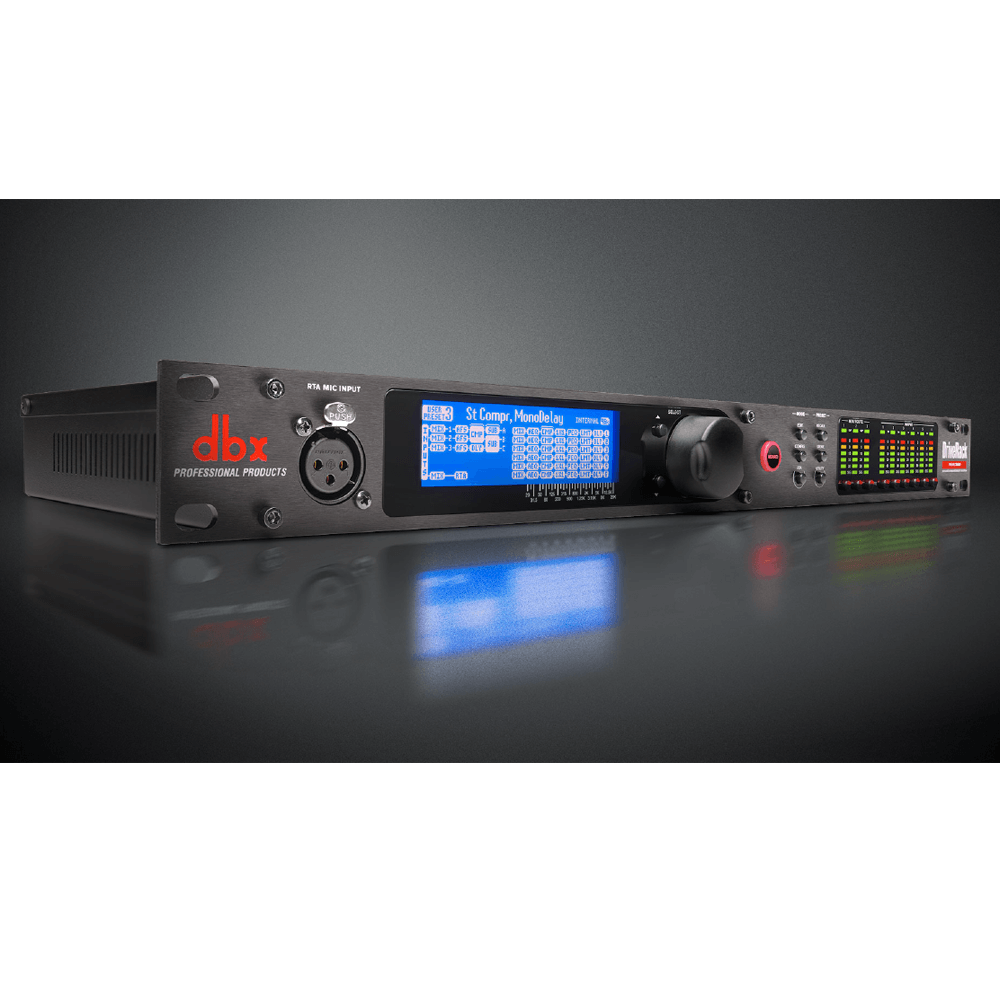

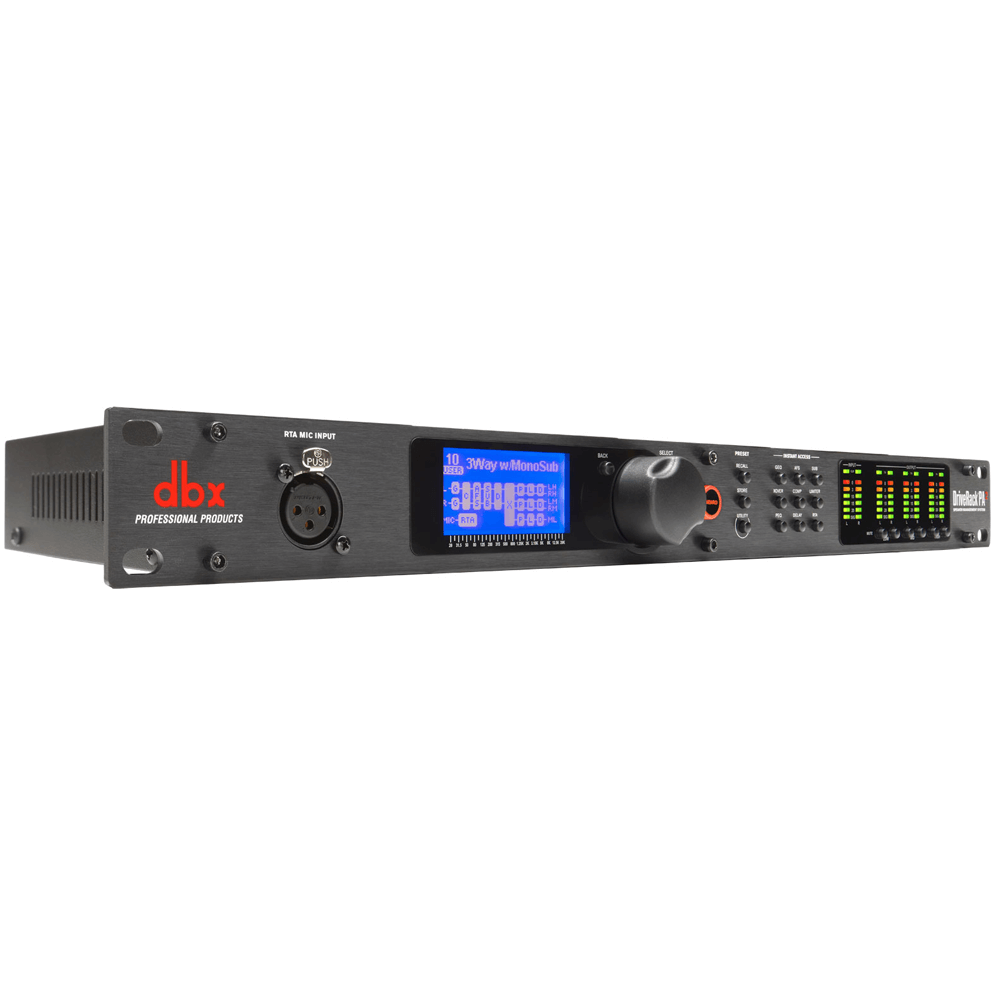

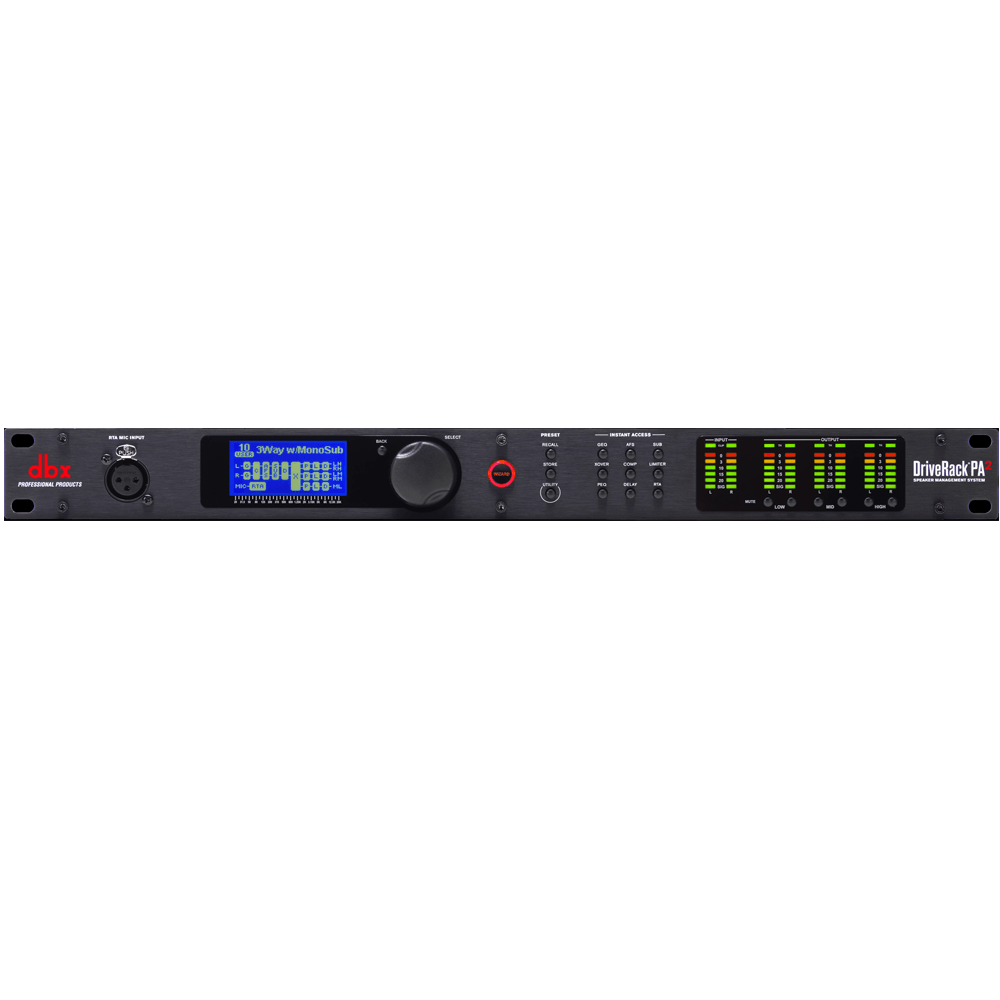

DBX DriveRack PA2 Complete Loudspeaker Management System

Vendor
DBX
Regular price
$545.00
Sale price
$545.00
Regular price
Sold out
Unit price
per

DBX DriveRack PA2 Complete Loudspeaker Management System

Provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, a new input delay module for delaying the FOH system to the back-line, Ethernet control via an Android®, iOS®, Mac®, or Windows® device, and updated Wizards, the DriveRack PA2 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.

FEATURES

• 8-Band Parametric EQ (adjusted when using the AutoEQ) Input
• Crossover (supports full range, 2-way, and 3-way systems)
• 8-Band Parametric EQs (used for speaker tunings) Output

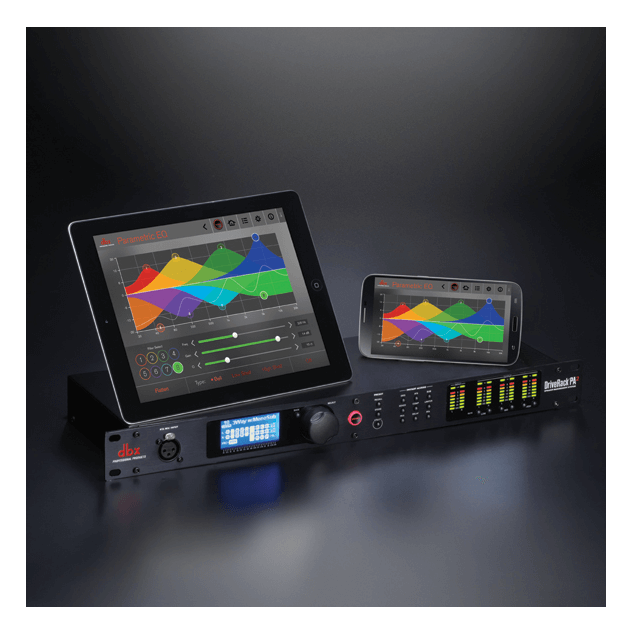

• Mobile Control (Android®, iOS®, Mac®, Windows®)
• All New AFS™ (Advanced Feedback Suppression)
• Driver Alignment Delays
• Subharmonic Synthesis
• All New Setup Wizard
• Streamlined AutoEQ™
• dbx Compression
• dbx Limiting
• Graphic EQ



SPECIFICATIONS

Type IV Dynamic Range ~ 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW
Interchannel Crosstalk ~ < -110 dB, -120dB typical (input-to-output: < -100 dB)
Mic Preamp Equivalent Input Noise (EIN) ~ < -117dB, 22Hz-22kHz, 150 ohm (RTA)

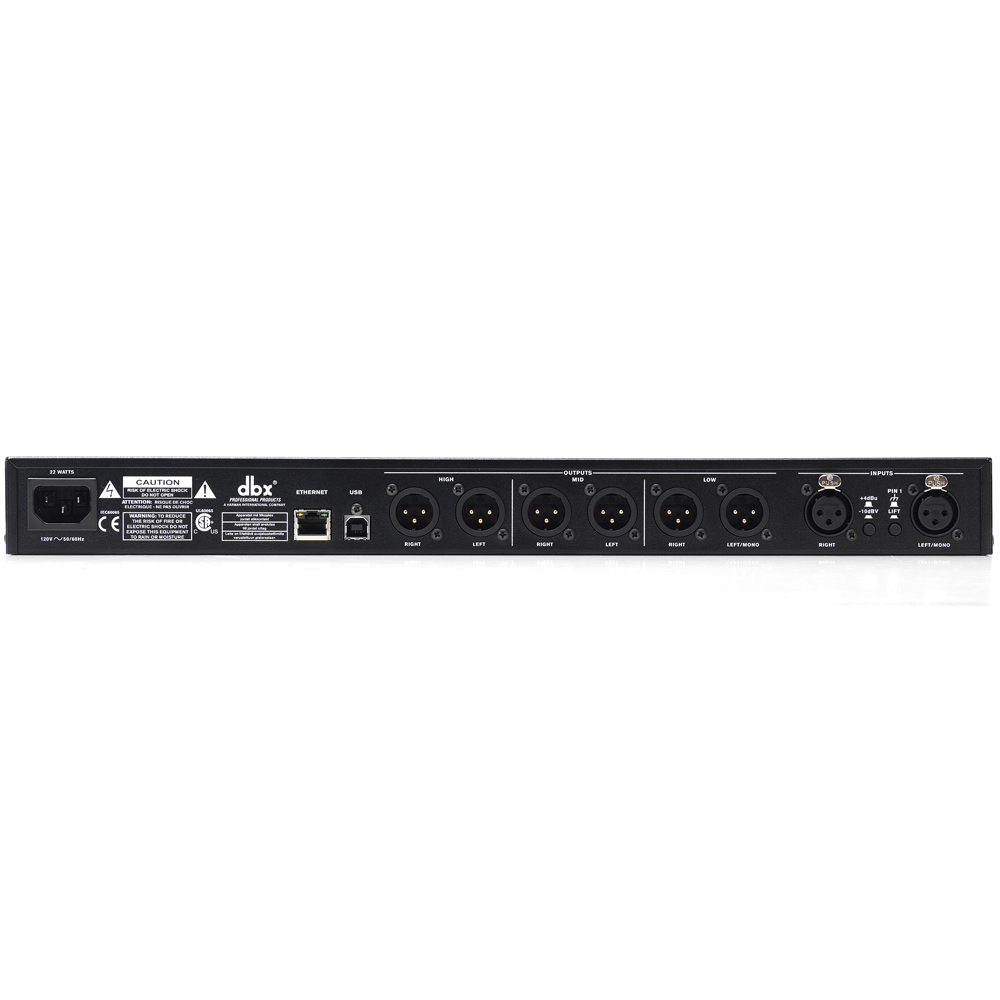

Input Connectors ~ (2) Female XLR line inputs. (1) Female XLR RTA Mic input
Operating Voltage ~ 100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 Hz
THD +Noise ~ 0.003% typical at +4dBu, 1kHz, 0dB input gain
A/D Dynamic Range ~ 112 dB A-weighted, 110 dB unweighted
D/A Dynamic Range ~ 112 dB A-weighted, 110dB unweighted
Dynamic Range ~ >110 dB A-weighted, >107dB unweighted
Output Type ~ Electronically balanced, RF filtered
Input Type ~ Electronically balanced/RF filtered
Dimensions (H x D x W) ~ 1.75 x 5.75 x 19 inches
A/D Converter ~ dbx Type IV™ Conversion System
Alignment Delay ~ 10ms per channel (60ms total)
Frequency Response ~ 20Hz – 20kHz, +/- 0.5dB
Input ~ (2) line inputs. (1) RTA Mic input
Mic Preamp Phantom Power ~ +15VDC (RTA)
Output Connectors ~ Male XLR
Shipping Weight ~ 6.75 lbs.
Input Impedance ~ >50 kohm
Input Delay Length ~ 100ms
Output ~ (6) Line Outputs
Power Consumption ~ 22 W
Output Impedance ~ 120 Ω
Max Output ~ +20dBu
Sample Rate ~ 48kHz
CMRR ~ > 45dB
