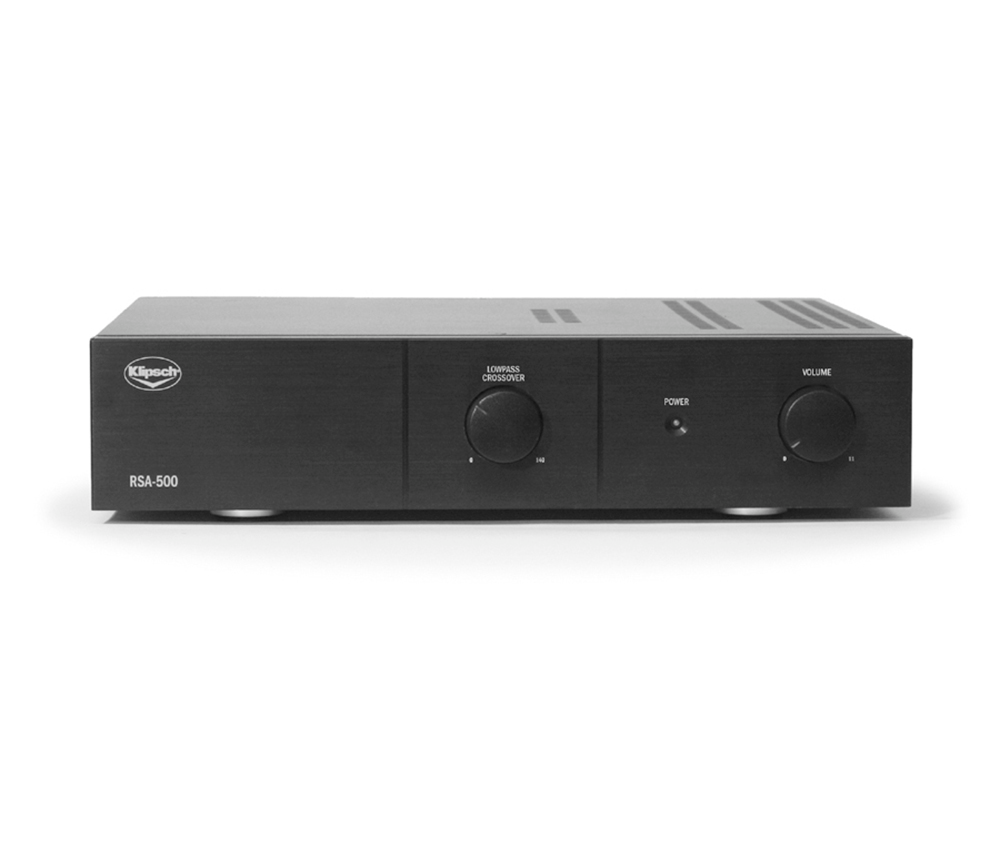

Klipsch Reference Premiere Series RSA-500 Subwoofer Amplifier (Each)

The RSA-500 amplifier is a high-powered device that can drive up to two subwoofer modules.
Delivering 300 watts into an 8-ohm load (one subwoofer module) and 500 watts into a 4-ohm load (two subwoofer modules).
The fuse that affects performance levels is housed on its rear panel for quick and easy replacement, to keep end users from inadvertently tampering with performance levels.

Luckily a detachable IEC power cord removable which allows for the simple removal and re-installation of the entire amplifier unit.
Standard input/output connectivity supports any type of system.
This subwoofer amplifier was primarily designed for use with the RW-5802 in wall subwoofer and the AW-800-SW outdoor subwoofer.

Theres an EQ switch for use with different subwoofers
These deliver a lot of performance for the price.
Great in combination for a home theater/music system.



• 300 watts continuous into 8 ohms or 500 watts continuous into 4 ohms
• Selectable signal-sensing or voltage triggered auto-on/off circuit
• EQ switch for use with different subwoofers
• Line and speaker level inputs
• Rack ears included
• 1 Channel



• Enclosure Type ~ Use only with RW-5802, and AW-800-SW subwoofer enclosures (either one or two)

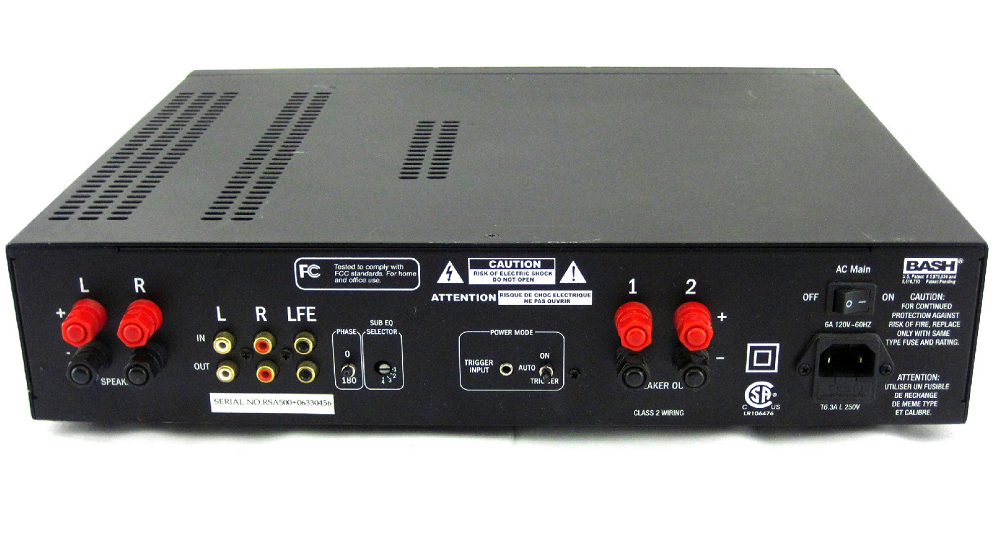

• Inputs ~ 2 Gold-plated speaker binding posts, 2 Gold-plated RCA phono jacks plus single LFE
• Features ~ Selectable EQ, Speaker Level In, Low voltage trigger, rack ears included
• Outputs ~ 2 Gold-plated unfiltered RCA phono jacks plus single LFE
• Power Output @ 4 ohm ~ 500W into 4 ohms, 20Hz-1kHz @ <1.5% THD
• Power Output @ 8 ohm ~ FTC Rated Power: 300W into 8 ohms
                                              Dynamic Power: 875W into 8 ohms
• Low Pass Crossover ~ Continuously variable from 40-120Hz
• Auto Power On ~ 2 second ON delay, 15 minute OFF delay
• Dimensions (W x H x D) ~ 17 x 3.5 x 12.6 inches
• Finishes ~ Black anodized aluminum face plate
• Phase ~ Switchable between 0 and 180 degrees
• Frequency Response ~ 20Hz-1kHz ± 3dB
• Voltage ~ 110/120 VAC 60Hz
• Amplifier ~ BASH Hybrid
• Weight ~ 18 lbs


In the Box

• 2 Rack mount brackets
• 8 foot AC power cord
• 4 Machine screws
